Taylor-Dunn MX6-00 - Aligning Pulleys

3-42
SECTION 3

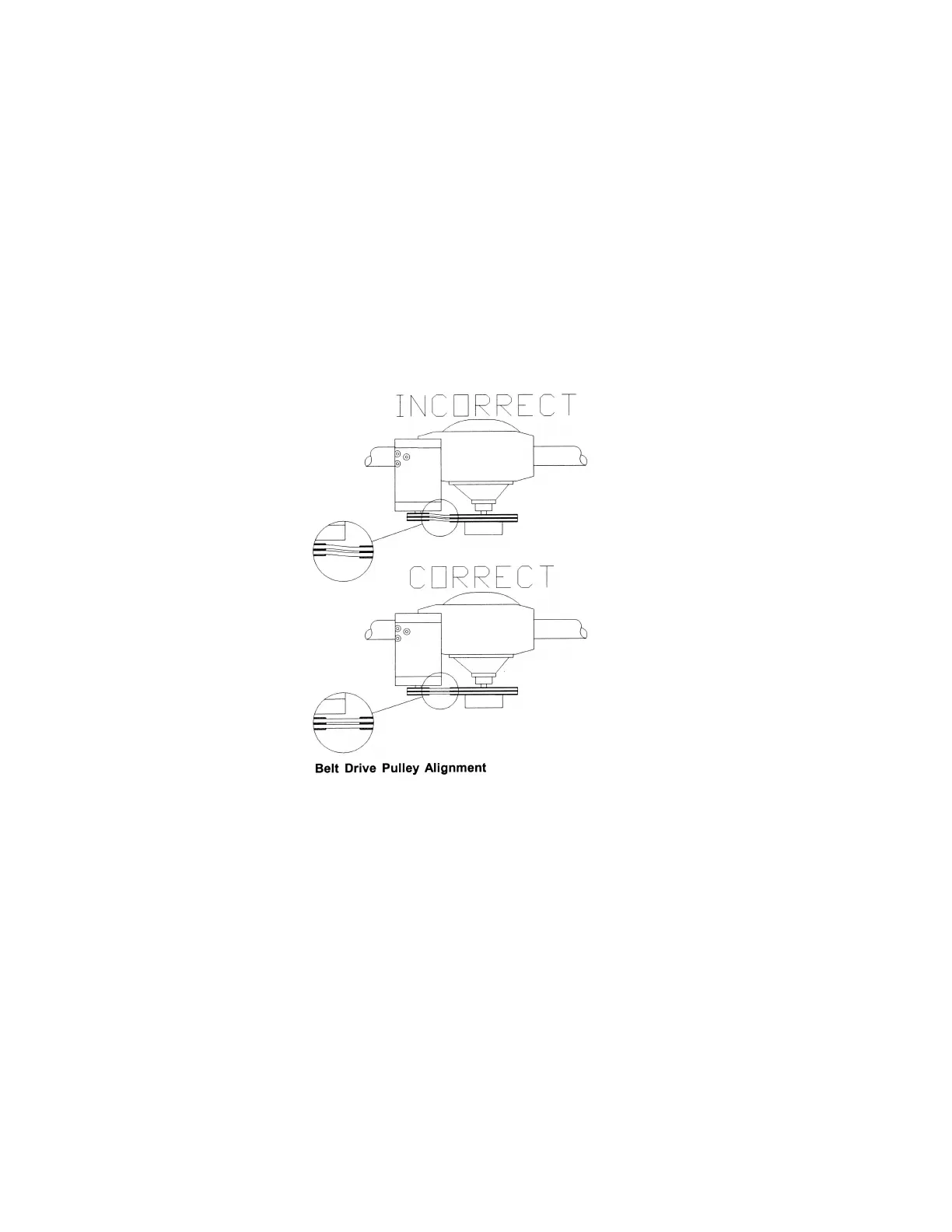

Aligning Pulleys
To align the pulleys, use the following procedure:
1. Loosen the motor mount clamp nuts and move the motor either
forward or backward until the two pulley faces are in line with
each other.
2. Tighten the motor mount clamp nuts and check the belt deflection.
Adjust the belts as needed.
