Taylor-Dunn MX6-00 - SS5-34 Drive Service; Disassembly of the Belt Drive Assembly

3-35
SS5-34 Drive Service
To properly service this assembly, it will have to be removed. At this point, we are
assuming that the entire assembly has been removed from the vehicle and has been
placed on a clean, level work area or on a stand designed to hold such an assembly.
Disassembly of The Belt Drive Assembly
1. Disconnet the batteries.
2. Remove the brake.
3. Loosen the motor mount clamp nuts and the Belt adjusting bolt
locknut.
4. Turn the Belt adjusting bolt until the belts can be removed without
prying or forcing them off.
5. Remove the belts.
6. Remove the motor by removing the motor mount clamp nuts.
7. Remove the pulley from the pinion shaft.
8. Inspect the seal in the pinion bearing retainer. Replace it if it is wornor
damaged.
9. Reassemble in reverse order and adjust the belt tension and the
pulley alignment using the appropriate procedures.

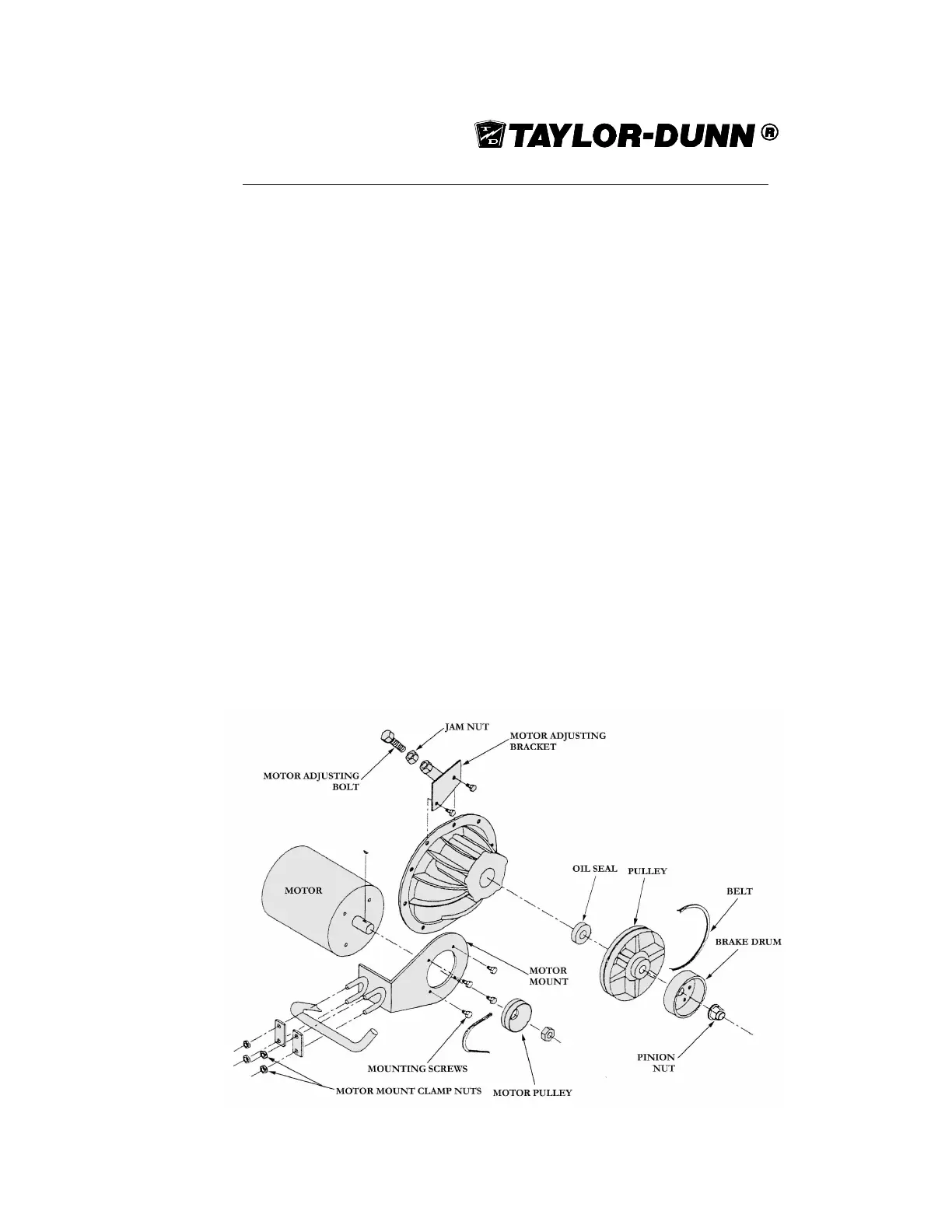

Belt Drive Disassembly
