Removing the SS5-34 Rear End Assembly
Here, we are referring to the complete assembly including wheels, axle, housing, drive, and
drive motor. In order to remove this complete assembly from the vehicle, use the following
procedure:
1. Park the vehicle on a clean level surface.
2. Disconnect the batteries.
3. Lift the front of the vehicle and place blocks under the frame.
4. Lower the front of the vehicle onto jack stands.
5. Raise the deck board and disconnect the motor wires.
6. From under the vehicle, remove the brake linkage from the brake lever.
7. Remove the shock from its lower mount.
8. Remove the swing arm pivot bolts.
9. Raise the rear of the vehicle and remove the rear end assembly from the
vehicle.
10. Install in reverse order.
Always use a lifting strap, hoist, and jack stands of adequate
capacity to lift and support the vehicle. Failure to use lifting and
supporting devices of rated load capacity to support the vehicle
may result in serious injury and property damage.

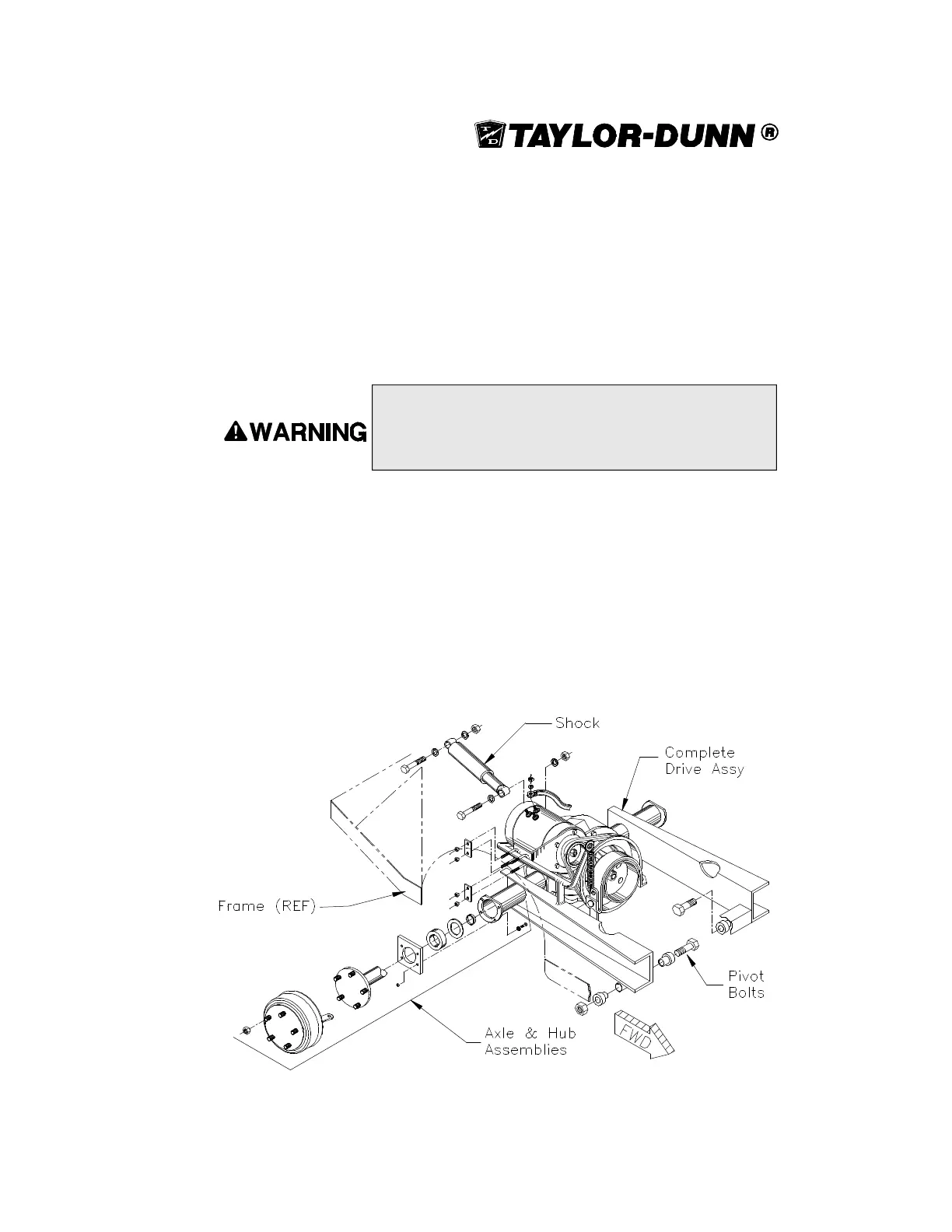

Complete SS5-34 Drive and Rear End Assembly
