ELECTRICAL TROUBLESHOOTING
SECTION 4 Main Sequence PAGE 7
Control Wire inputs (continued)

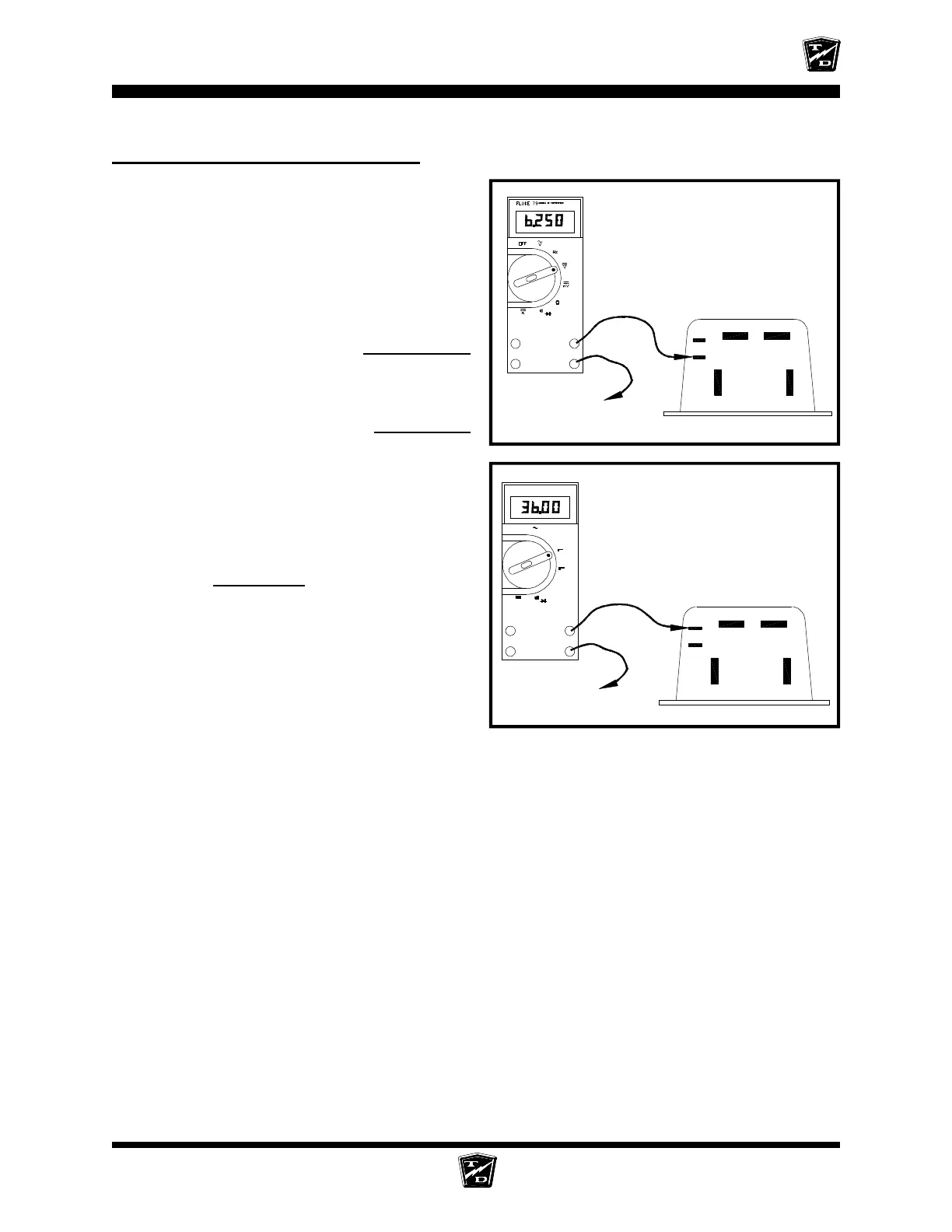

Connect a voltmeter across the PMC #2 terminal
and battery negative.
Close all interlock switches, turn the Key Switch
ON, and place the F&R Switch in Forward.
Depress the accelerator pedal to engage
MS-1 only.
• If the voltage is not between 6.0 and 6.5
volts then go to the Accelerator
sequence.
Depress the pedal fully.
• If the voltage is not between 11.0 and
11.5 volts then go to the Accelerator
sequence.
Connect voltmeter across the PMC KSI terminal
and battery negative.
With the pedal still fully depressed:
• If the voltage is not at battery volts then
go to the Key Switch sequence.
• If the voltage is at battery volts then
continue with the next test.
Negative
Main Battery
B-
M-
A2
B+
#2
KSI
_
+
The voltage shown is for illustration
only. The actual voltage may vary.
Negative
Main Battery
B-
M-
A2
B+
#2
KSI
FLUKE 79
OFF
V
Hz
SERIES II MULTIMETER
+
−
A
Ω
mV
V
The voltage shown is for illustration
only. The actual voltage may vary.
