ALGORITHMS
M5AMBIEN
Rev 1.2 Page 30

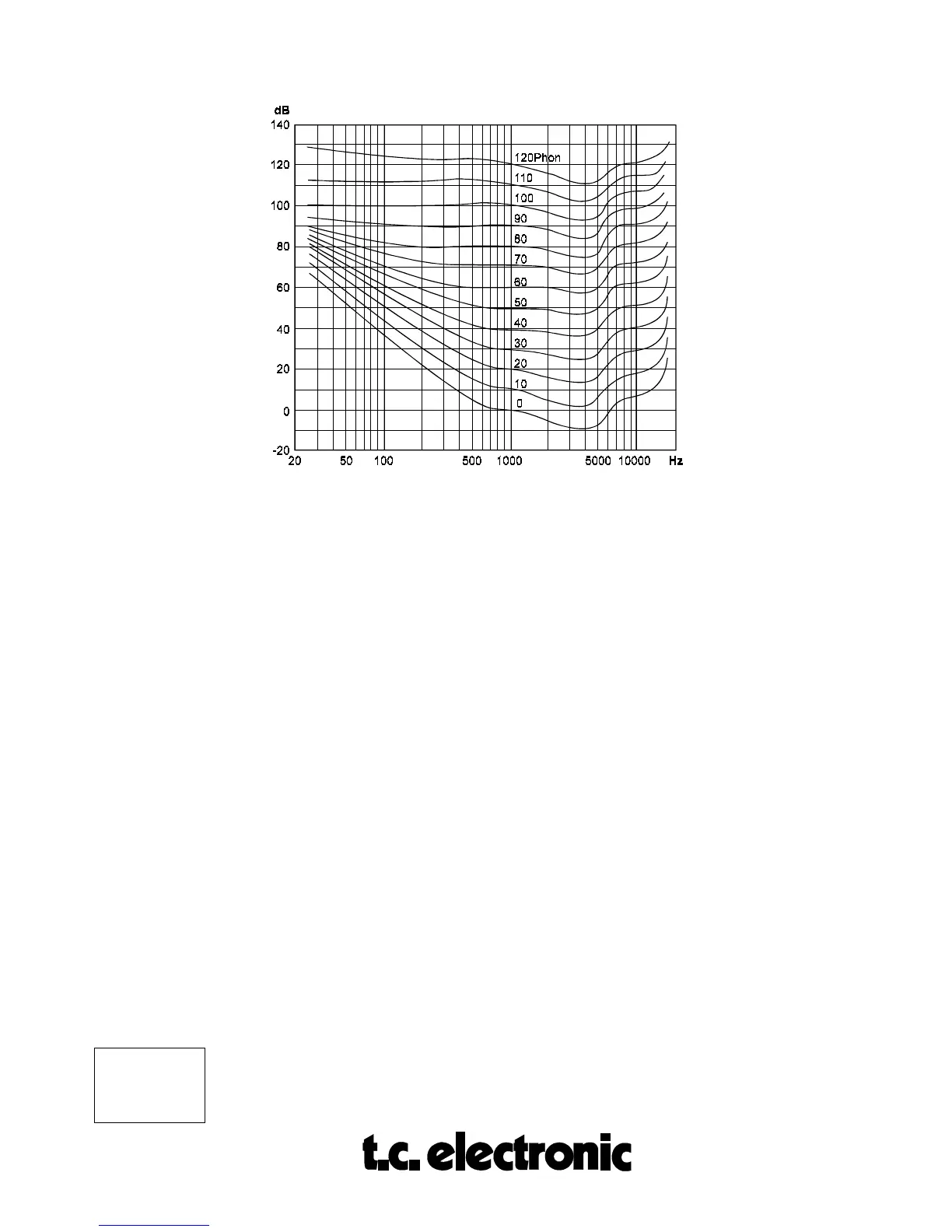

Fig. 4 The Fletcher-Munson Equal Loudness Contour Curves
EDIT PARAMETERS:
MIX 100 % Locked in 100% wet mode.
INLEV off - 0.0 dB. Sets the level of the input to the
TOOLBOX algorithm in 0.5 dB steps.
The function of the control is to
maximize dynamic range. Please note
that this control is positioned after the
input PPM meter, and will not affect the
input PPM reading, also if using an
analog input, make the analog input
adjustment in the G-LEVELS-menu
under UTILITY before setting this
control. However, if the red overload
LED flashes, turn down INLEV a couple
of dB's. The control does not affect the
bypassed signal level. Normally you do
not have to change the factory default
setting.
OUTLEV off - 0.0 dB. Sets the output level of the algorithm in
0.5 dB steps. The function of this control
is to maximize dynamic range by
allowing the TOOLBOX algorithm to
output maximum signal to the DA
converters. It affects the output PPM
