GEN. INSTR.
M5GENIN
Rev 1.0 Page 12

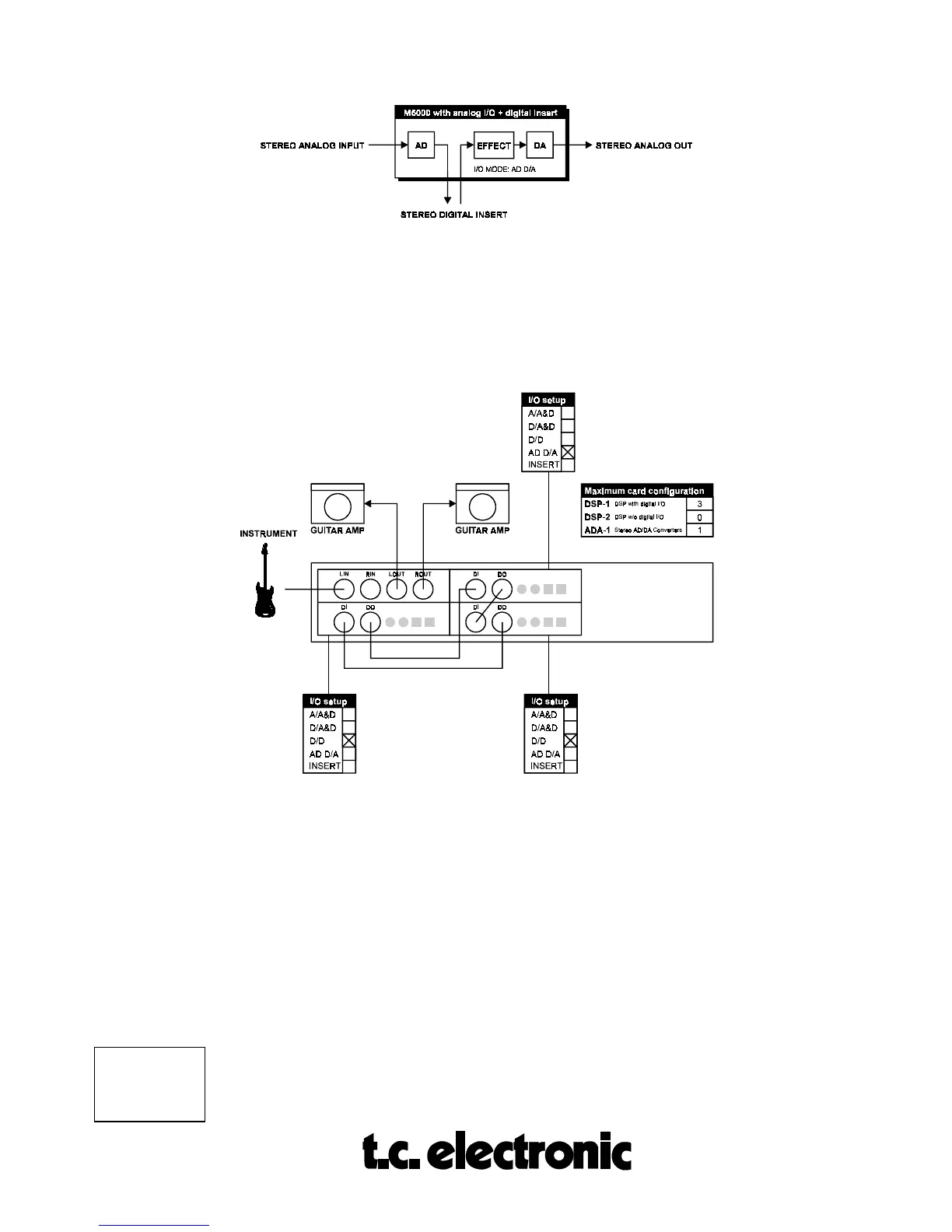

FIG. 3. AD D/A: Analog in and unprocessed digital out simultaneously with digital in and processed signal
analog out.
This may be used as a converter mode, where you convert from A to D (
unprocessed
digital
out) and also from D to A (analog
processed
signal out) simultaneously and independent. You
can use this mode for various purposes. An example is to use the M5000 as an AD converter
and connect the house clock to the digital input on the M5000. Another possibility is to use
more than one DSP-1 in a serial connection (FIG. 4).
FIG. 4. M5000 as a multieffect unit.
Another example is if you work with a digital storing media and want to record a guitar while
you are listening to some other tracks and also on the same time want reverb on these tracks.
You can then connect your guitar setup to the analog input on the M5000. From the digital
output you connect to the digital input on your DAT/ hard disk (FIG. 5).
