CONFIG. M5000
M5CONFIG
Rev 1.2 Page 12

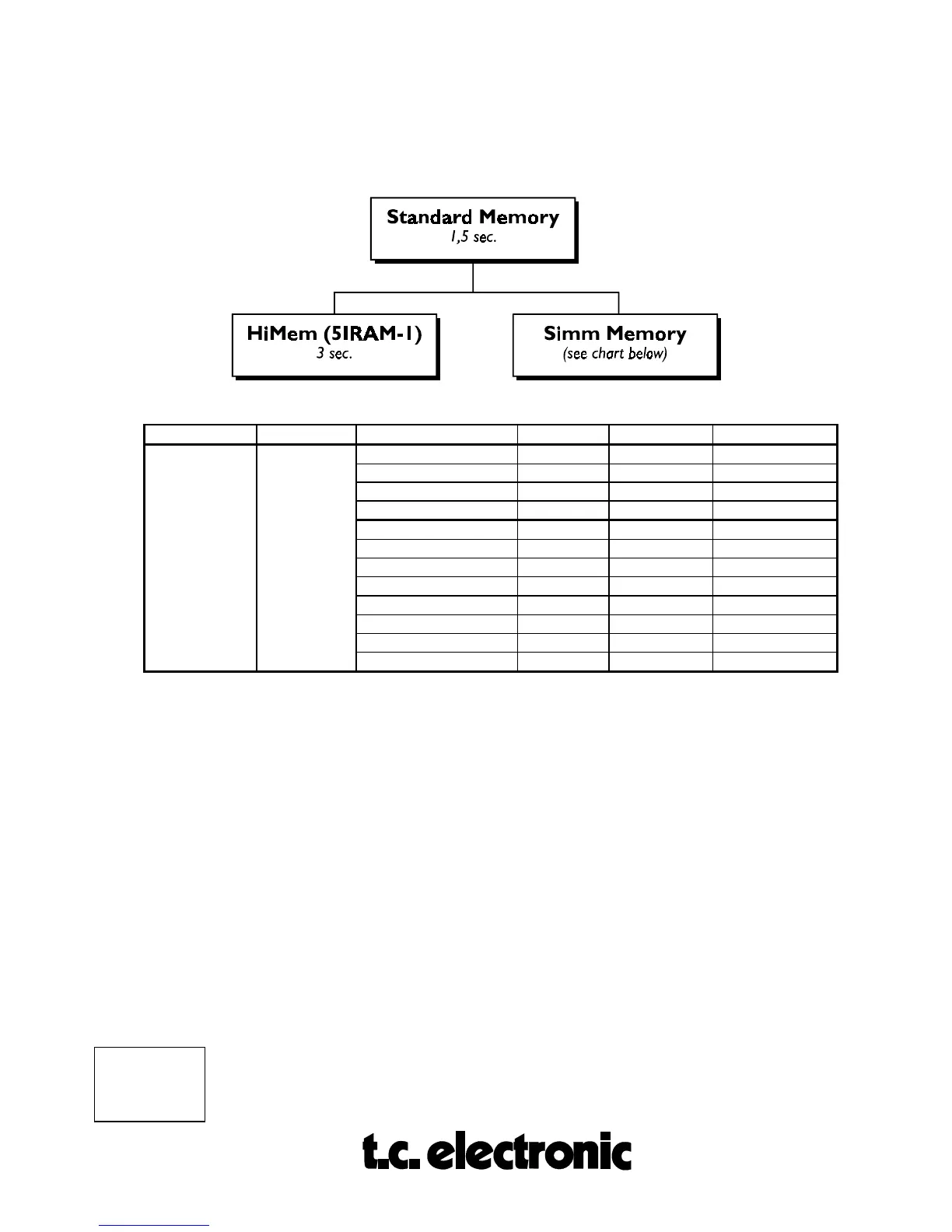

SELECTION OF THE SIMM PACK
MODULES
M5000 Display Code option seconds 44.1 (48) KHz Resolution No of SIMM's Type of SIMM's
23.7 (21.8) 16 bit 2 1 MByte x 8 bit
23.7 (21.8) 18 bit 2 1 MByte x 9 bit
23.7 (21.8) 24 bit 3 1 MByte x 8 bit
23.7 (21.8) 24 bit 3 1 MByte x 9 bit
95.0 (87.3) 16 bit 2 4 MByte x 8 bit
SAMPLER 5SAMP-3 95.0 (87.3) 18 bit 2 4 MByte x 9 bit
95.0 (87.3) 24 bit 3 4 MByte x 8 bit
95.0 (87.3) 24 bit 3 4 MByte x 9 bit
380.4 (349.2) 16 bit 2 16 MByte x 8 bit
380.4 (349.2) 18 bit 2 16 MByte x 9 bit
380.4 (349.2) 24 bit 3 16 MByte x 8 bit
380.4 (349.2) 24 bit 3 16 MByte x 9 bit
(the sampling times mentioned are max. mono sampling times)
Suggestions to SIMM brands:
SAMSUNG e.g. KMM594000B-7, 4M x 9 SIMM DRAM Memory Module
HITACHI
TEXAS INSTRUMENTS
TOSHIBA
Speed: fast page mode, 70 ns.
INSTALLING SIMM PACK's ON THE DSP-MODULE
On the DSP-card between the back plate and the sub boards there are 3 sockets named : IC16,
IC17 and IC18.
For installing 16/18 bit sampling, you have to place 2 modules in IC16 and IC18, the sockets
nearest to the back plate.
