3-12
Fig. 3.40
Fig. 3.39
Fig. 3.38
Fig. 3.37

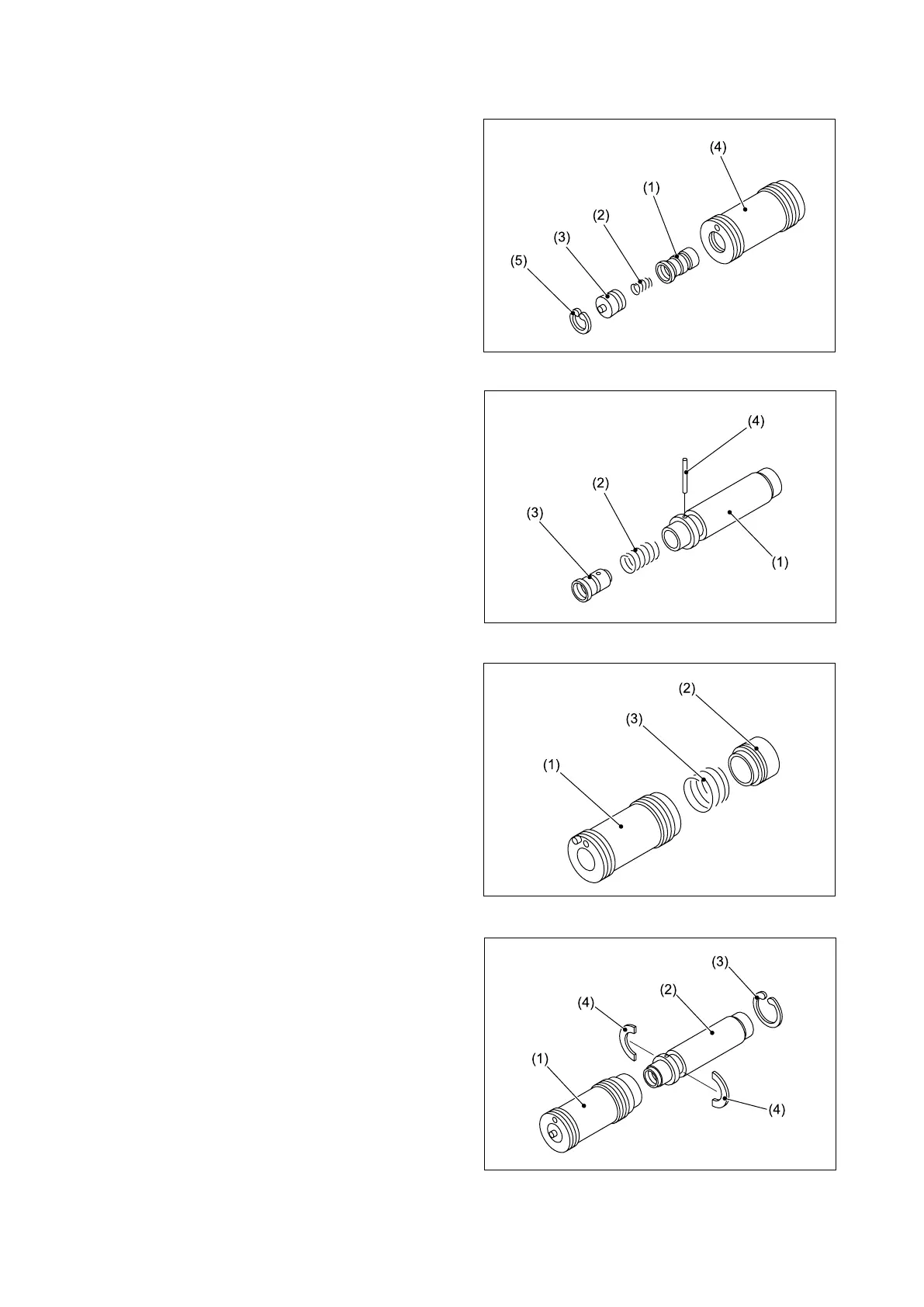

■ REASSEMBLY
① Reassembling the reaction piston
1) Insert the control valve (1), spring (2), and
plug (3) into the power piston (4). Then install
the snap ring (5).
2) Install the spring (2) onto the reaction piston
1 (1). Pushing in the control valve seat (3),
install the pin (4).
3) Install the reaction piston 2 (2) and spring (3)
onto the power piston (1).
4) Install the reaction piston 1 (2) on the power
piston (1) using the snap ring (3) and washer
plates (4).
