3-13
Fig. 3.44
Fig. 3.43
Fig. 3.42
Fig. 3.41

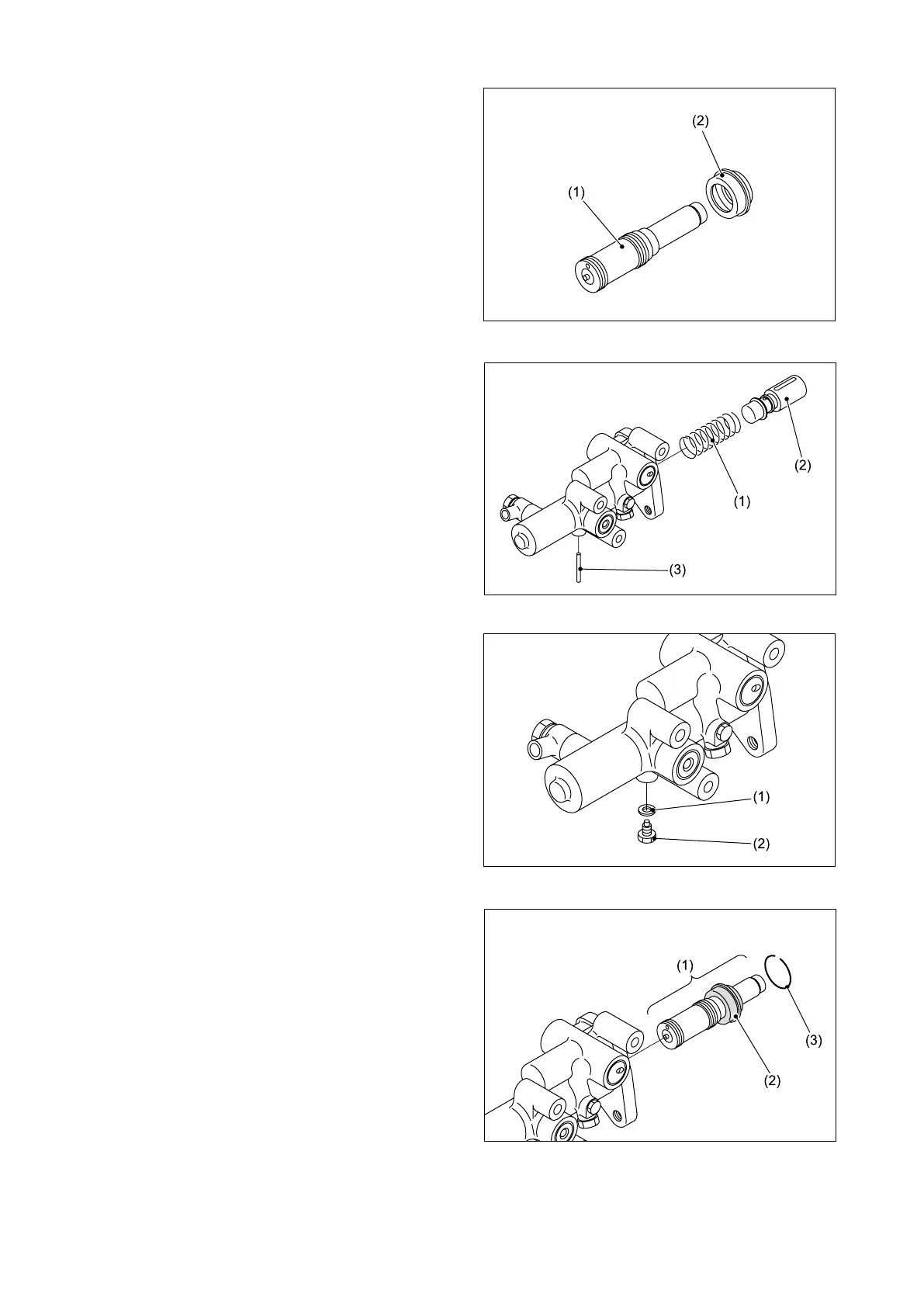

5) Install the guide assembly (2) on the reaction
piston 1 (1).
② Install the spring (1) and master cylinder
piston (2) on the cylinder section. Pushing in
the master cylinder piston (2), install the pin
(3).
③ Install the bolt (2) using a new gasket (1).
④ Install the reaction piston assembly (1) on the
cylinder. Pushing in the guide (2), install the
stopper ring (3).
