TCM FD35C9 - Page 145

3-31
Fig. 3.106
Fig. 3.105
Fig. 3.104

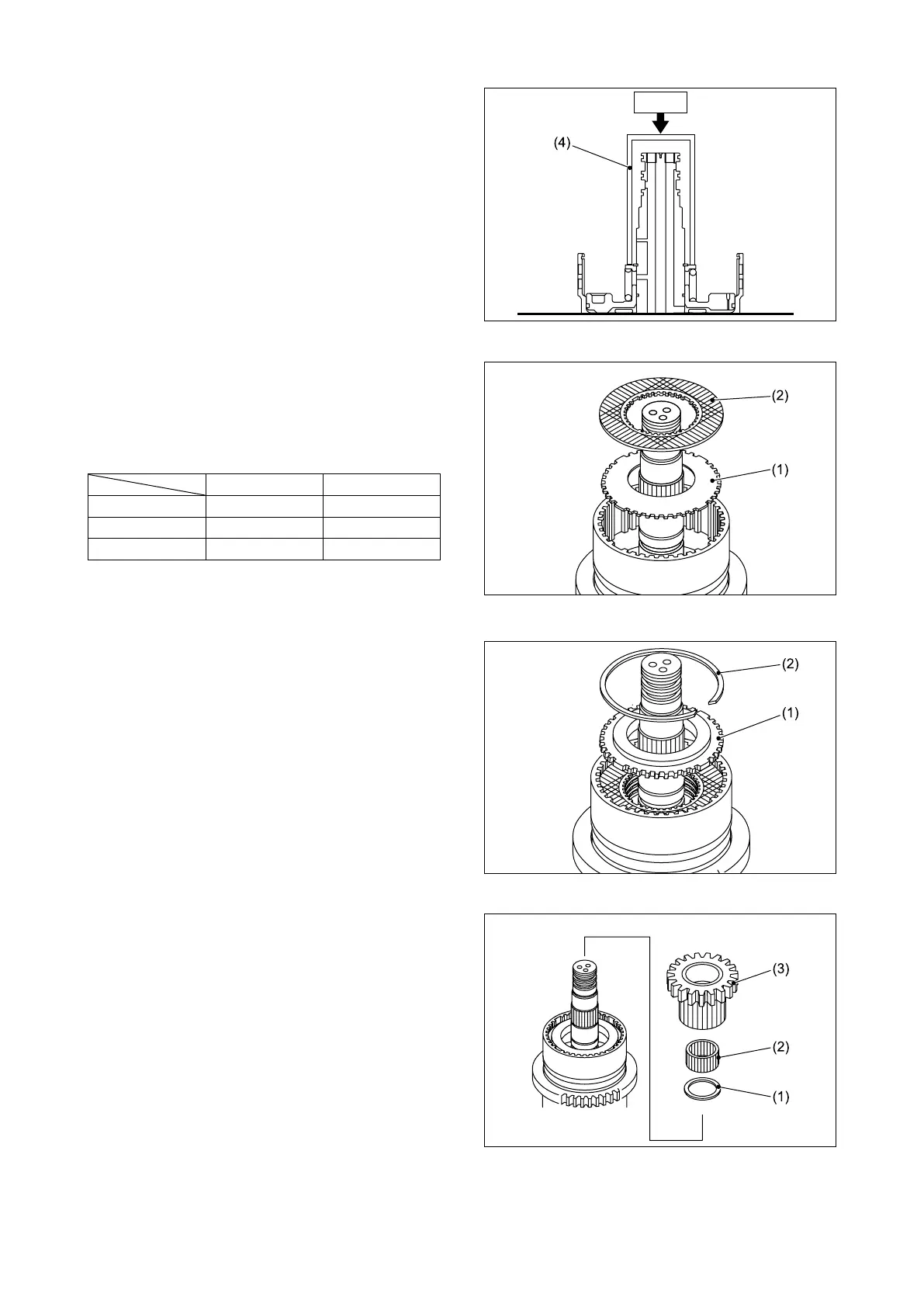

⑤ Installtheclutchdiscs(veseparatorplates(1)
andvefrictionplates(2))asfollows:Install
oneseparatorplaterstandthenonefriction
plate. Keep installing pairs of plates in that
order, ending with a separator plate.
Friction plates Separator plates
Fwd 5 6
Rev 5 6
2nd 5 6
⑥ Install the end plate (1) and secure with the
snap ring (2).
⑦ Install the thrust washer (1), needle bearing
(2), and gear (3).
Fig. 3.103
Press
