■REASSEMBLING CLUTCH PACK
The explanation given below is made using the
forward/reverse clutch pack. The explanation
about other clutch packs is omitted because they
are similar in construction to the forward/reverse
clutch pack.

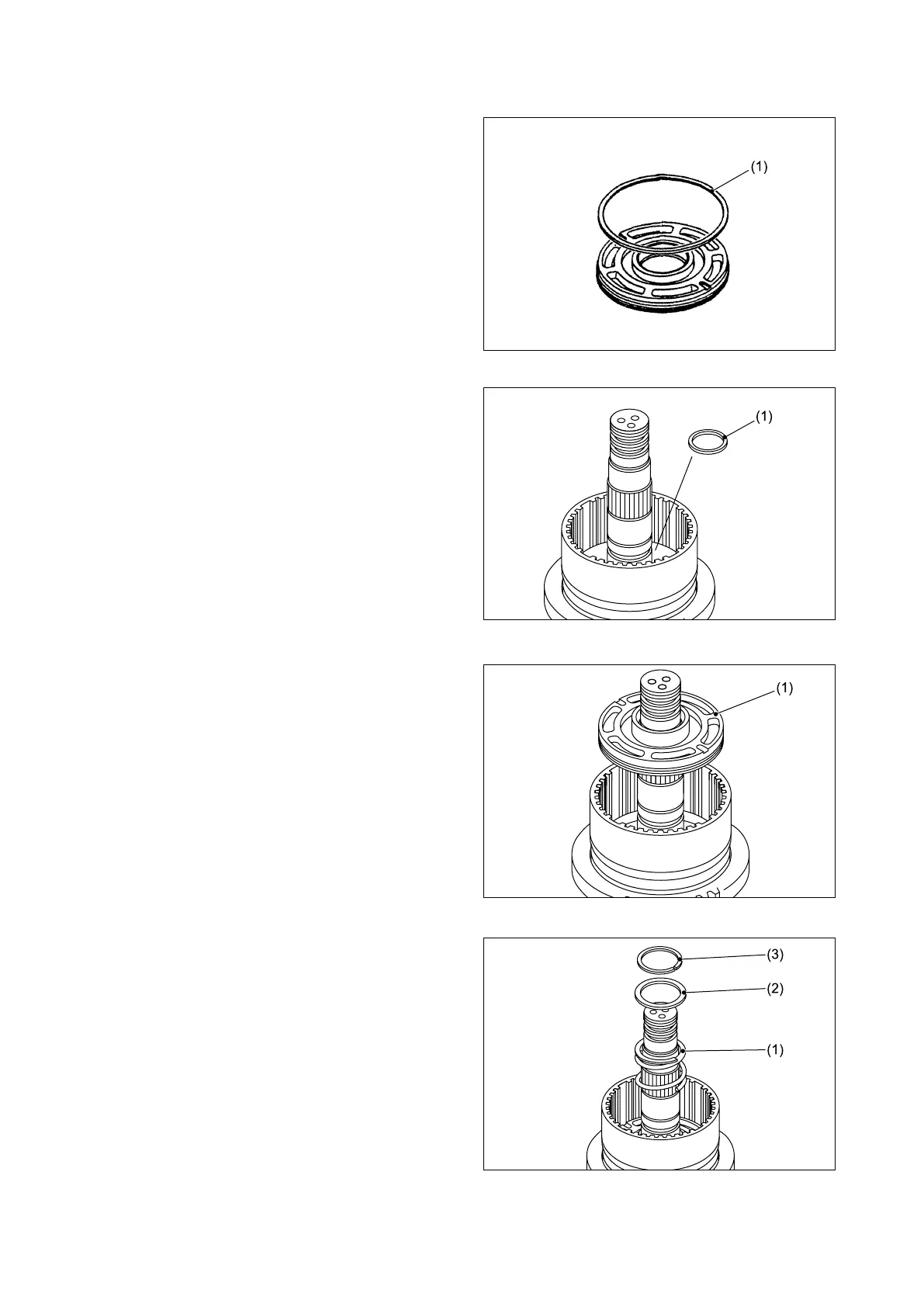

① Install the seal ring (1) on the outer diameter
of the piston.
② Install the seal ring (1) on the clutch shaft.
③ Install the piston assembly (1).
④ Install the return spring (1). Using a jig (4),
compress the return spring (1) along with the
retainer (2) and snap ring (3) till the snap ring
groove and secure it with the snap ring (3).
(For the jig (4), see Fig. 3.103.)
