TCM FD35C9 - Page 143

3-29

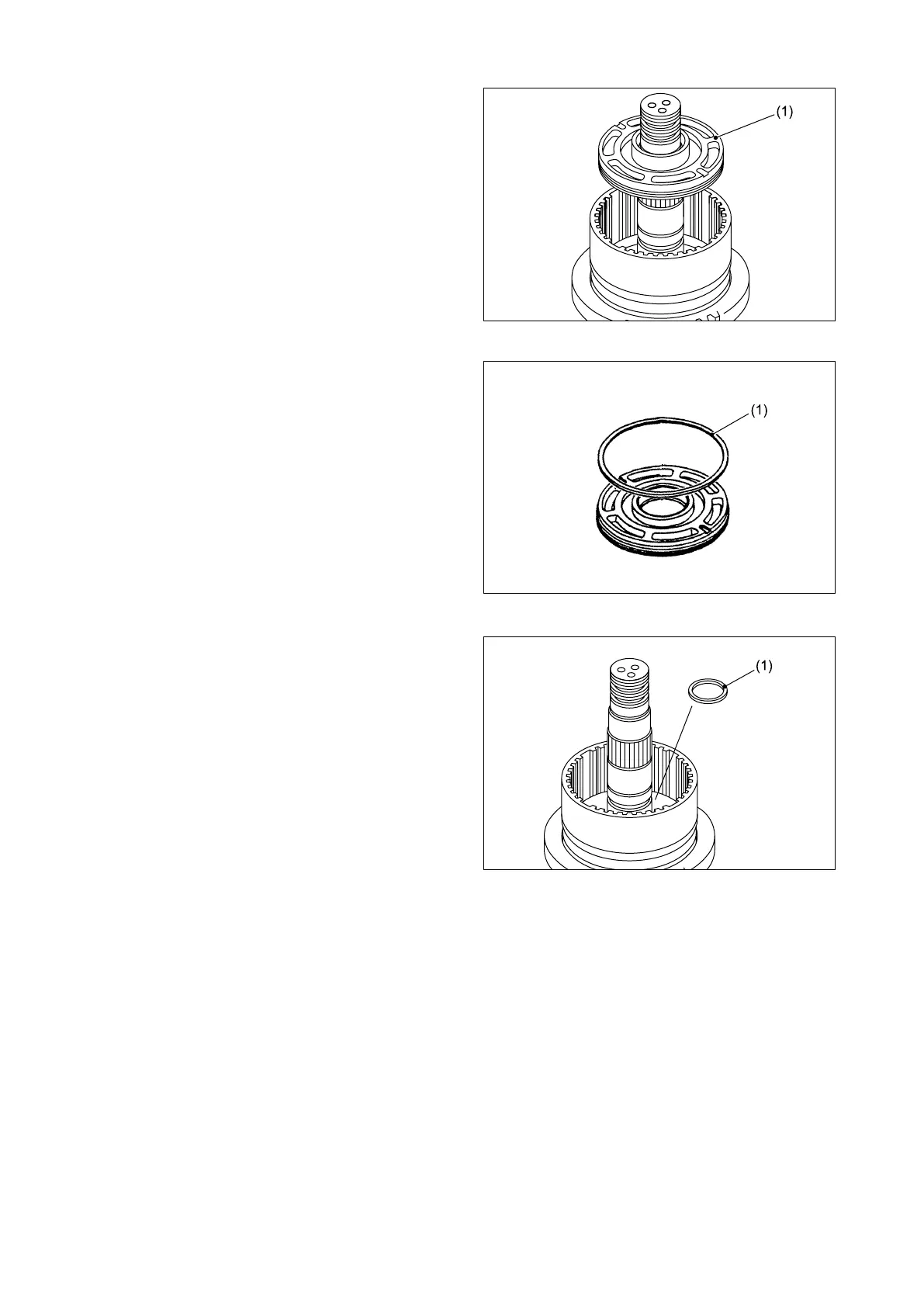

Fig. 3.96
Fig. 3.98
Fig. 3.97
⑦ Remove the piston (1) from the clutch drum.
⑧ Remove the seal ring (1) from the piston.
⑨ Remove the seal ring (1) from the shaft.
⑩ Follow the same steps for disassembling the
reverse clutch pack and the 2nd clutch pack.
