3-28
Fig. 3.92
Fig. 3.95
Fig. 3.93

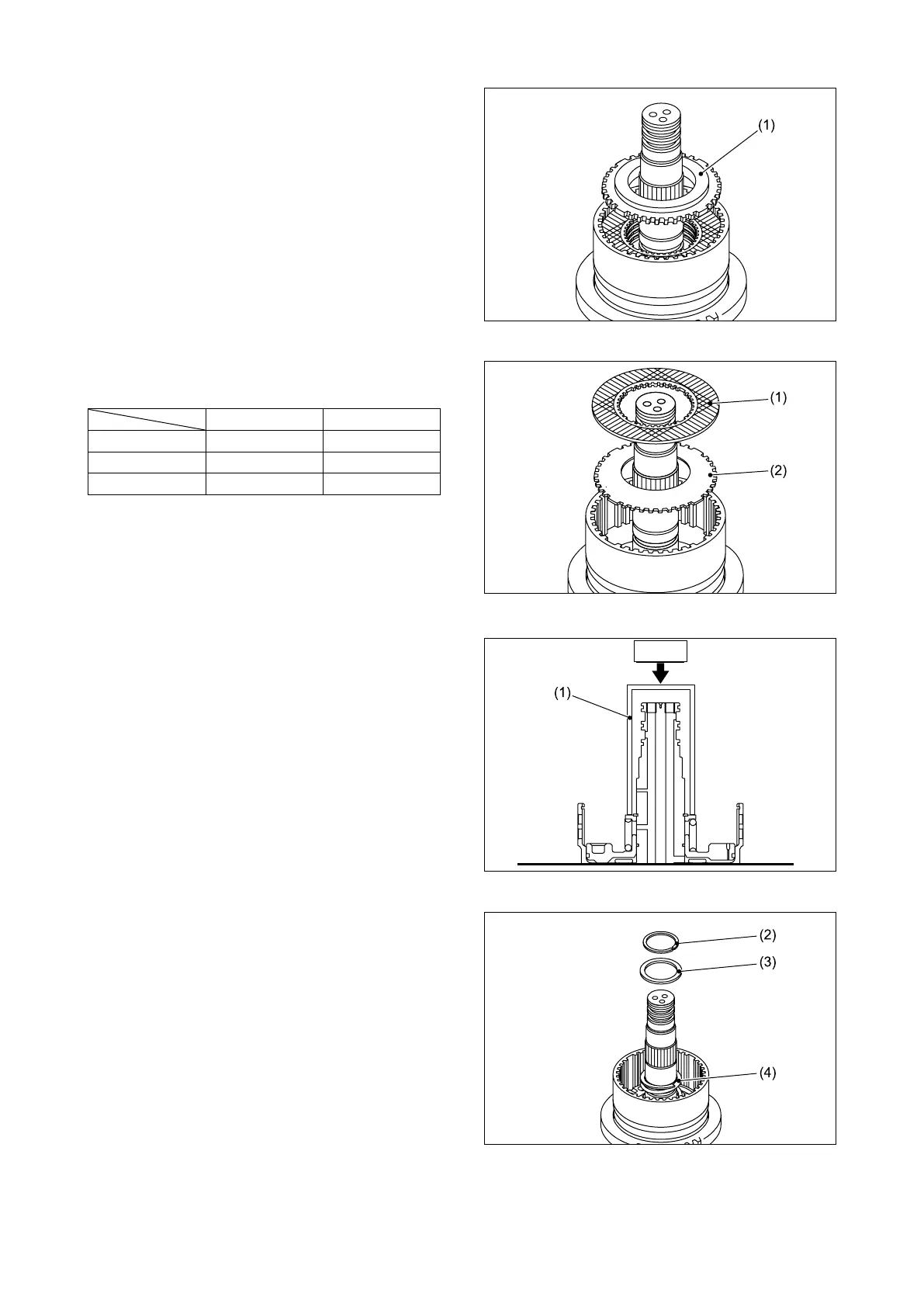

④ Remove the end plate (1).
⑤ Remove the clutch discs (friction plates (1)
and separator plates (2)).
Friction plates Separator plates
Fwd 5 6
Rev 5 6
2nd 5 6
⑥ Using a jig (1), compress the return spring
and remove the snap ring from the groove.
Release the compression slowly and remove
the snap ring (2), retainer (3), and return
spring (4).
Fig. 3.94
Press
