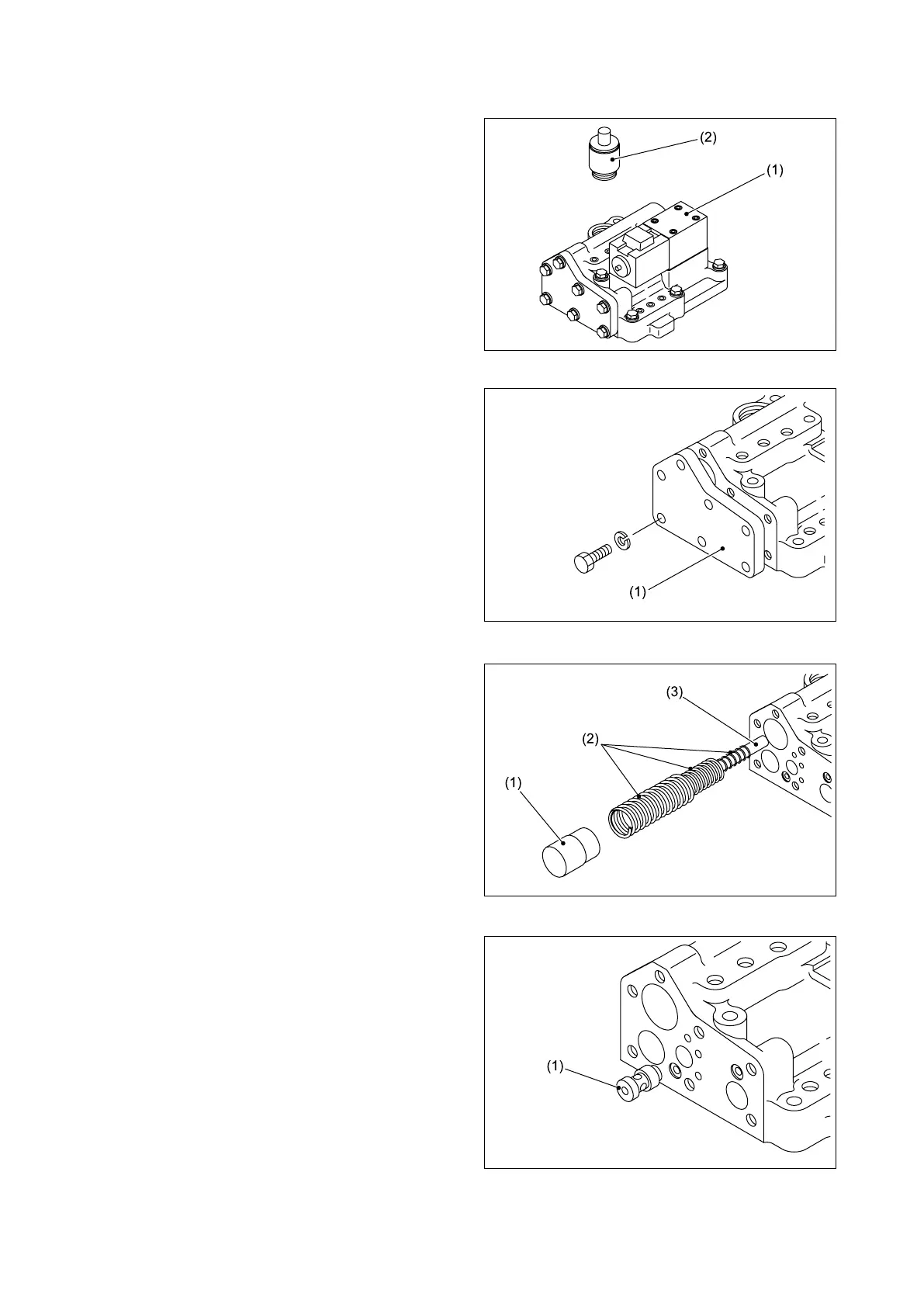

■DISASSEMBLING CONTROL VALVE
① Remove the forward/reverse solenoid valve
(1) and 2nd solenoid valve (2) from the valve
body.
② Remove the front cover (1).
③ Remove the accumulator piston (1), three
springs (2) and stopper (3).
④ Remove the modulator valve (1).
