TCM FD35C9 - Page 150

3-36
Fig. 3.121
Fig. 3.123
Fig. 3.122

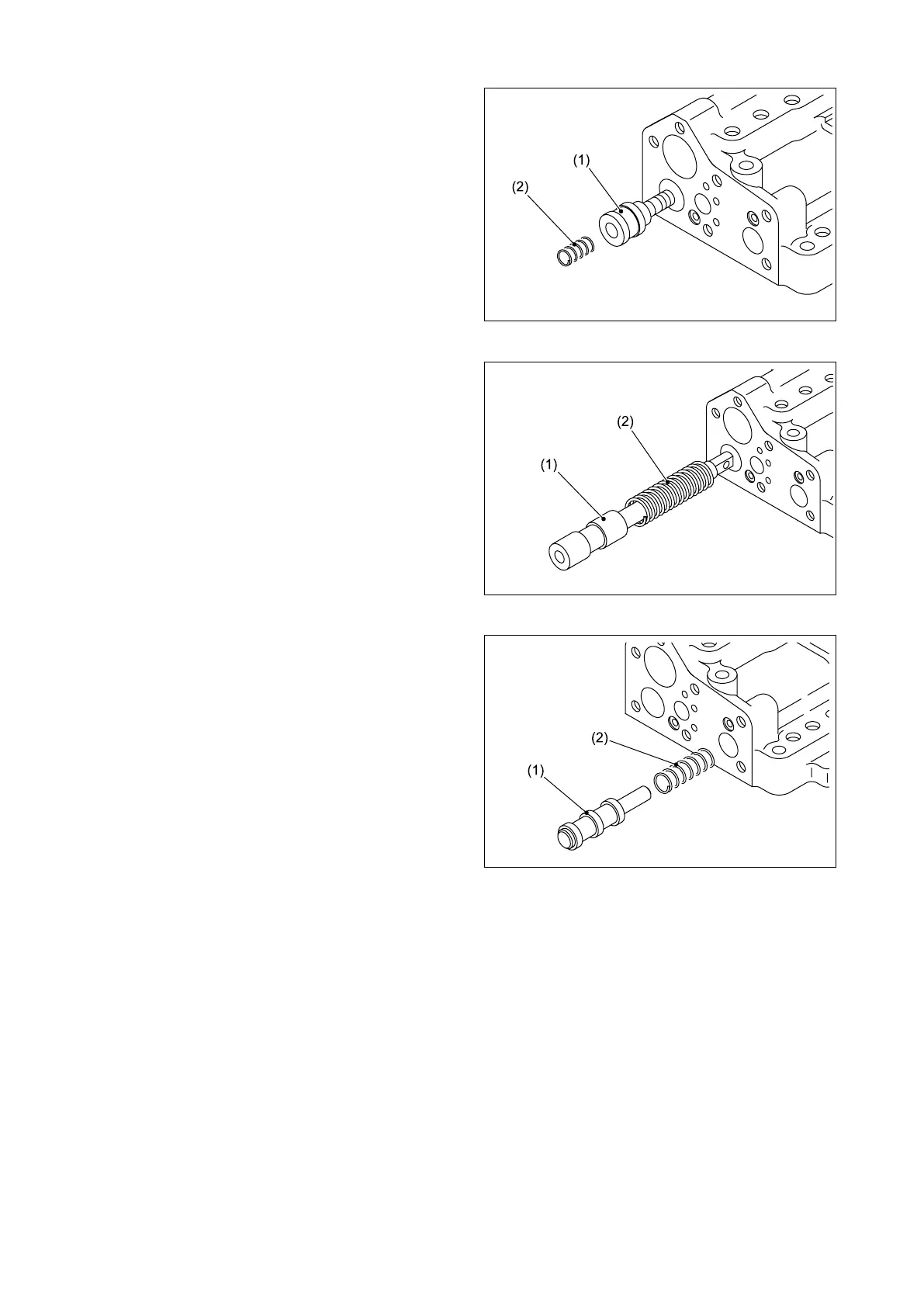

⑤ Remove the inching valve piston (1) and
spring (2).
⑥ Remove the inching spool (1) along with the
spring (2).
⑦ Remove the speed range selector spool (2nd)
(1) and spring (2) from the valve body.
