3-37
Fig. 3.124
Fig. 3.127
Fig. 3.126
Fig. 3.125

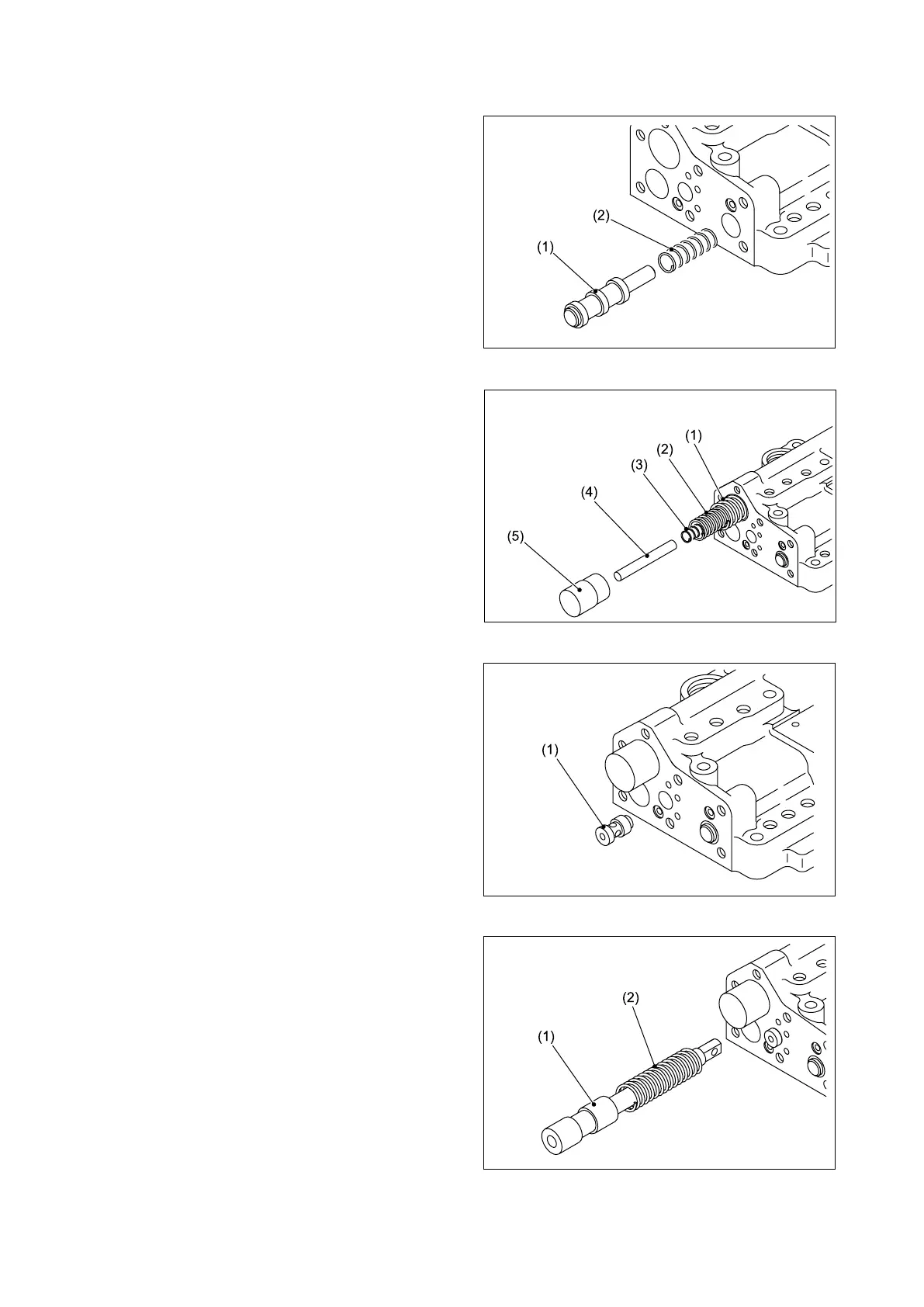

■REASSEMBLING CONTROL VALVE
① Install the selector spool (1) and the spring (2)
in the valve body.
② Install the accumulator springs (outer (1),
middle (2), inner (3)) in that order, and then
install the pin (4) and piston (5).
③ Install the modulation piston (1) into the valve
body.
④ Install the inching spool (1) and spring (2)
into the valve body.
