TCM FD35C9 - Page 152

3-38
Fig. 3.128
Fig. 3.131
Fig. 3.130
Fig. 3.129

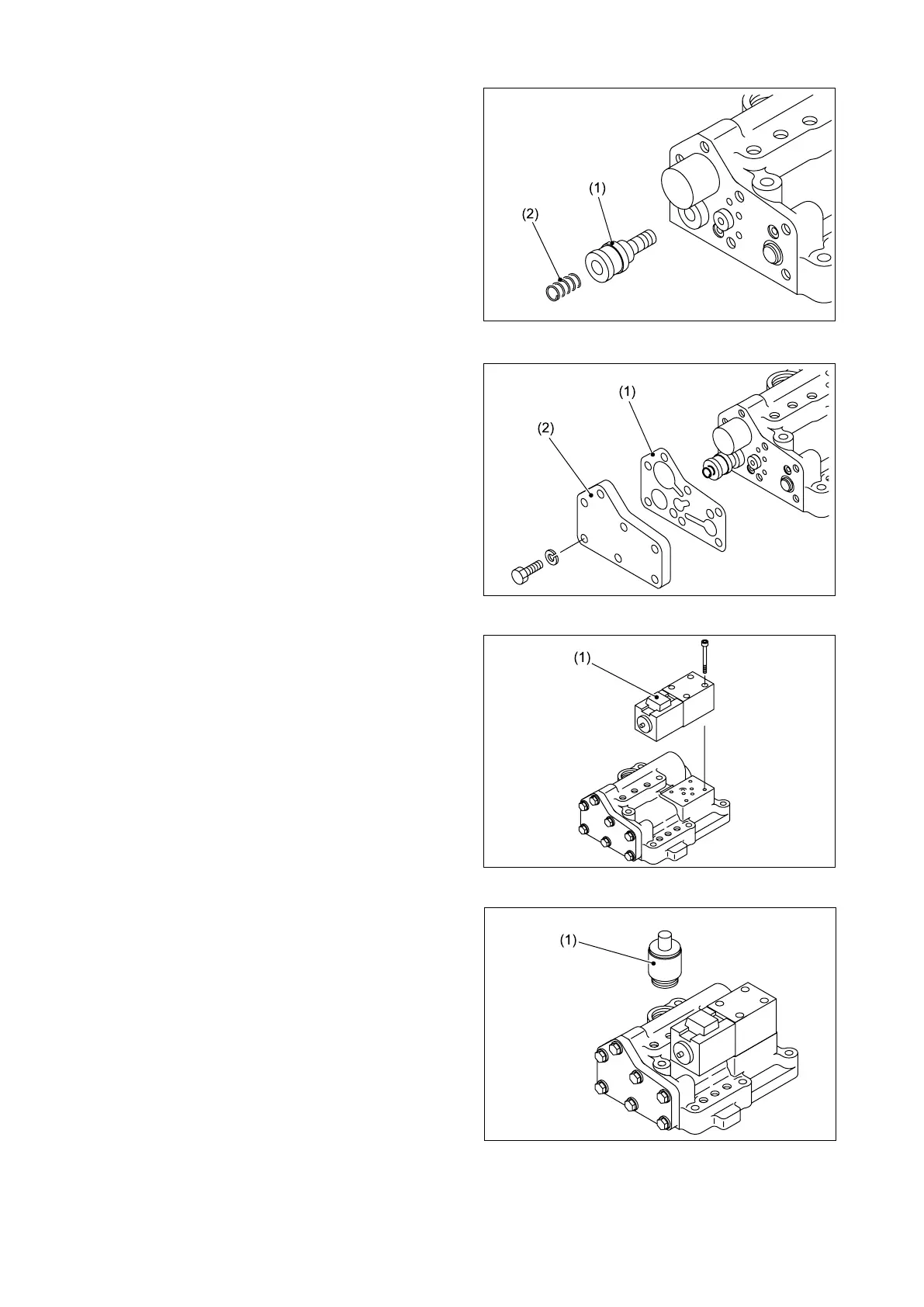

⑤ Install the piston (1) and spring (2) to the back
of the inching spool.
⑥ Install the front cover (2) with a gasket (1)
into the valve body.
⑦ Install the directional solenoid valve (1) onto
the valve body.
⑧ Install the speed range solenoid valve (1) onto
the valve body.
