3-40
Fig. 3.136
Fig. 3.138
Fig. 3.137

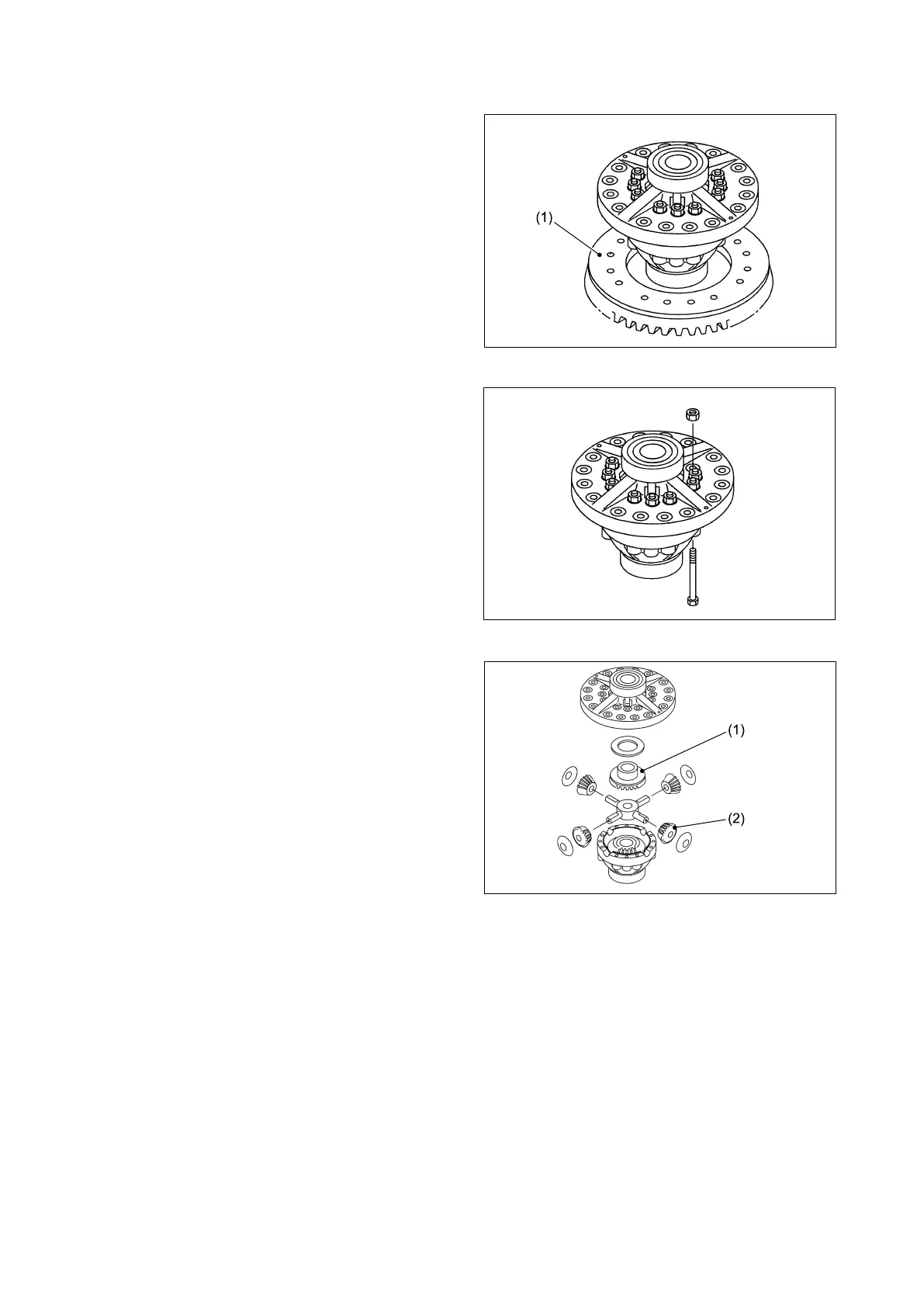

⑤ Disassembling cross case
1) Remove the ring gear (1) from the cross case
assembly.
2) Putthecrosscaseuprightwiththeangehalf
upward and remove the assembling bolts and
nuts.
3) Separate the cross case into the flange half
and the plain half. Remove the side gears (1)
and pinion gears (2).
