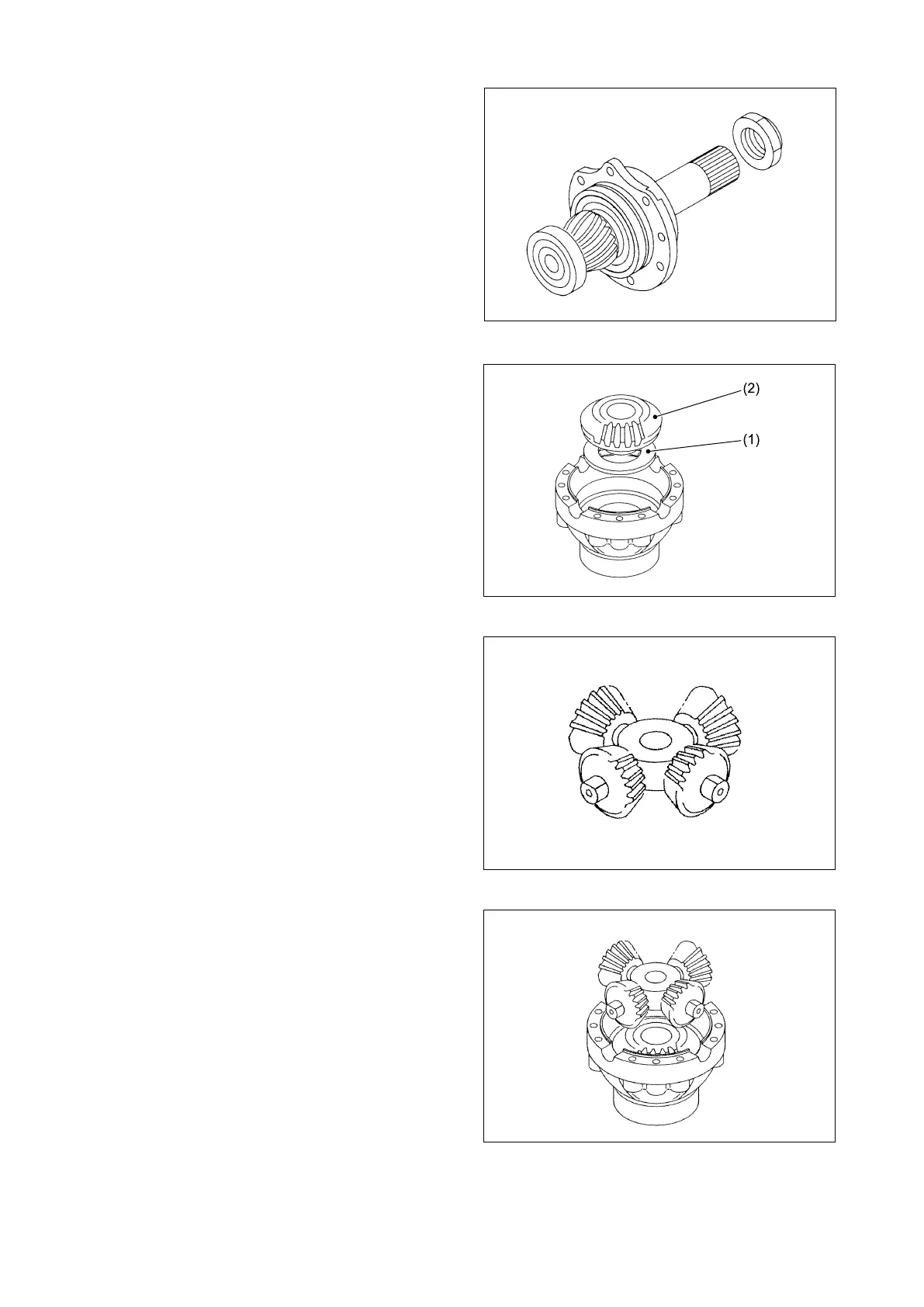

Fig. 3.151
Fig. 3.154
Fig. 3.153
Fig. 3.152
7) Install the lock nut on the drive pinion and
tighten to 392.3 to 441.3 N-m {40 to 45
kgf-m} [289 to 326 ft-lbs]. Measure the
starting torque of the drive pinion. If the
measurement is out of the standard value,
adjust it by increasing or reducing the number
of shims described in step 5).
Starting torque: 2.9 to 3.9 N-m {30 to 40 kgf-cm}
[0.22 to 0.29 ft-lbs]
② Reassembling cross case
1) Install the side gear (2) on the plain half with
2-mm thrust washer (1).
2) Install the pinion gears and thrust washers on
the spider.
3) Install the pinion gear assembly on the plain
half.
