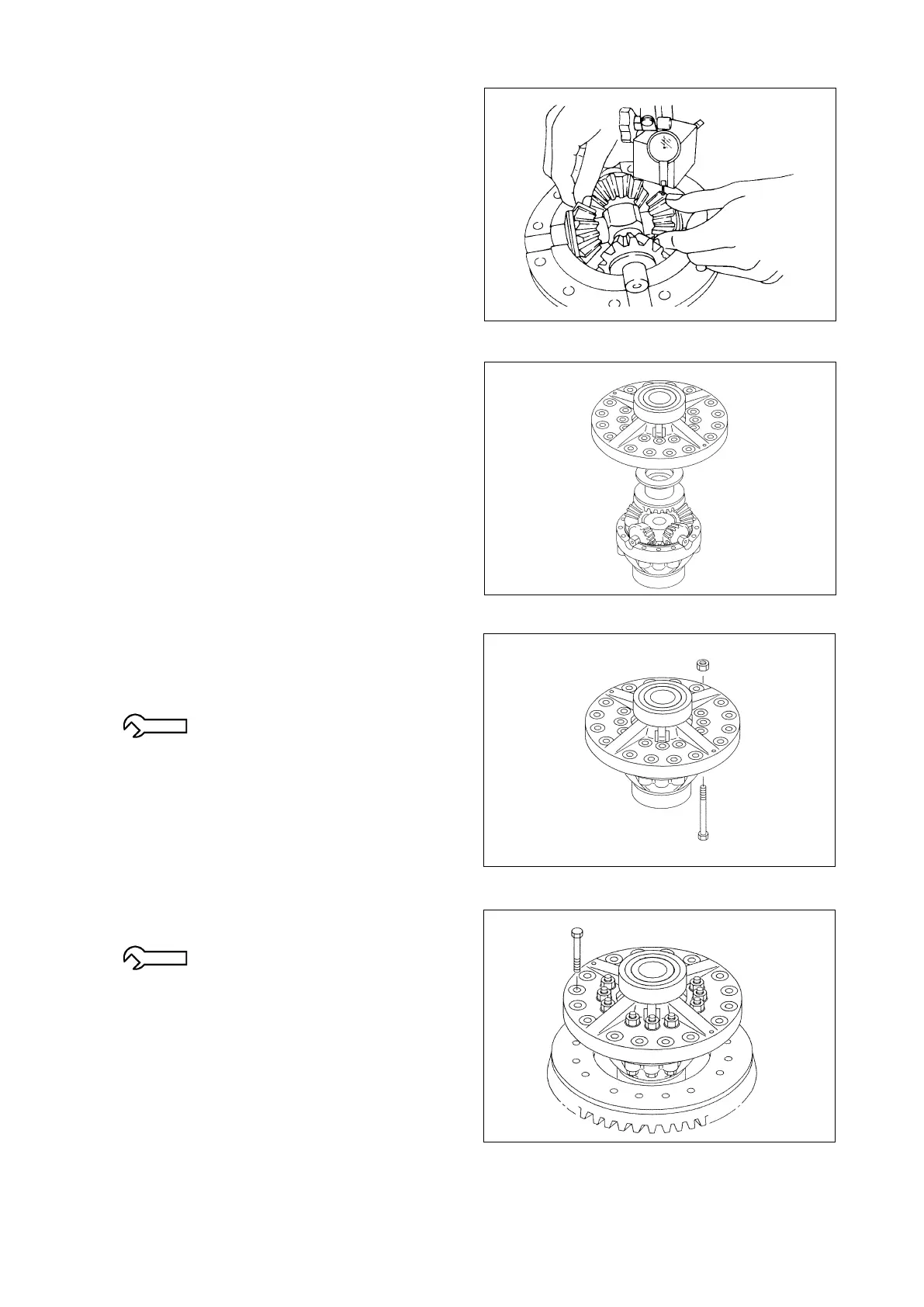

Fig. 3.155
Fig. 3.158
Fig. 3.157
Fig. 3.156
4) Measure the backlash between each of the
side gears and each of the pinion gears.
If the measurement is out of the standard
value, adjust it by increasing or reducing the
thickness of washer for the side gear.
Backlash: 0.23 to 0.33 mm
[0.009 to 0.013 in.]
Washer thickness: 1.8, 1.9, 2.0, 2.2, 2.3, 2.6 mm
[0.07, 0.075, 0.078, 0.087,
0.091, 0.102 in.]
5) Install the same types of thrust washers and
side gear as for the plain half, on the flange
half.
6) Holdingthesidegearoftheangehalfcase
by your hand, install the flange half on the
plain half and then tighten the assembling
bolts and nuts.
127.5 to 190.3 N-m
{1300 to 1940 kgf-cm}
[94 to 140 ft-lbs]
Note: Apply LOCTITE #270 on the threaded
part.
7) Installtheringgearontheangehalf.
127.5 to 190.3 N-m
{1300 to 1940 kgf-cm}
[94 to 140 ft-lbs]
Note: Apply LOCTITE #270 on the threaded
part.
