3-52
Fig. 3.172
Fig. 3.171
Fig. 3.170

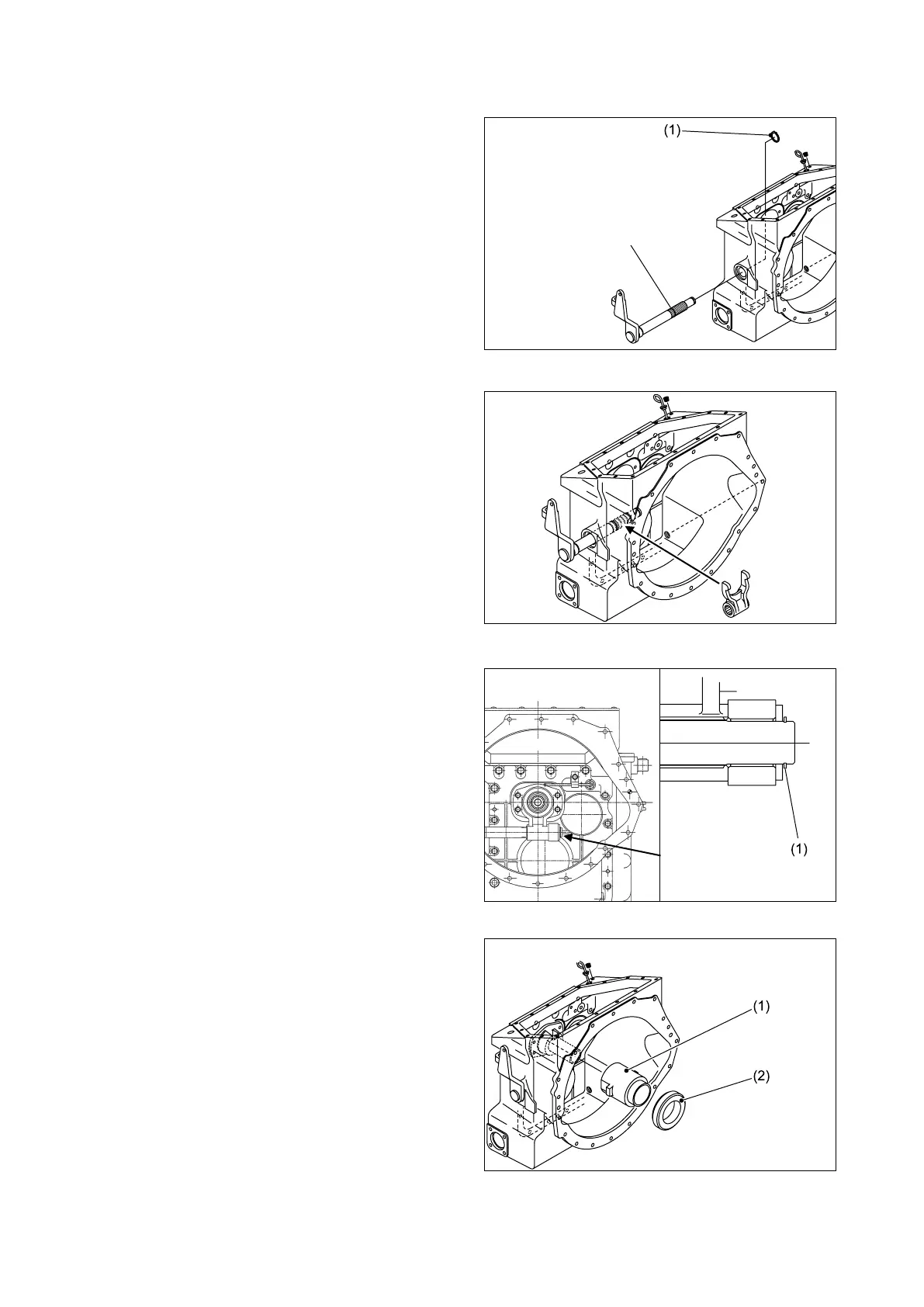

■REASSEMBLING CLUTCH
HOUSING
① Insert the arm assembly through the hole in
the clutch housing and then install the snap
ring (1) on the arm assembly.
② Install the arm assembly on the boss of the
clutch housing, aligning the splines of the arm
assembly with the splines of the shift arm.
③ Install the snap ring (1) using the spacer.
④ Install the thrust bearing (2) on the retainer (1),
and then install the support.
Fig. 3.169
Install the snap ring (1)
here.
To Next Page
