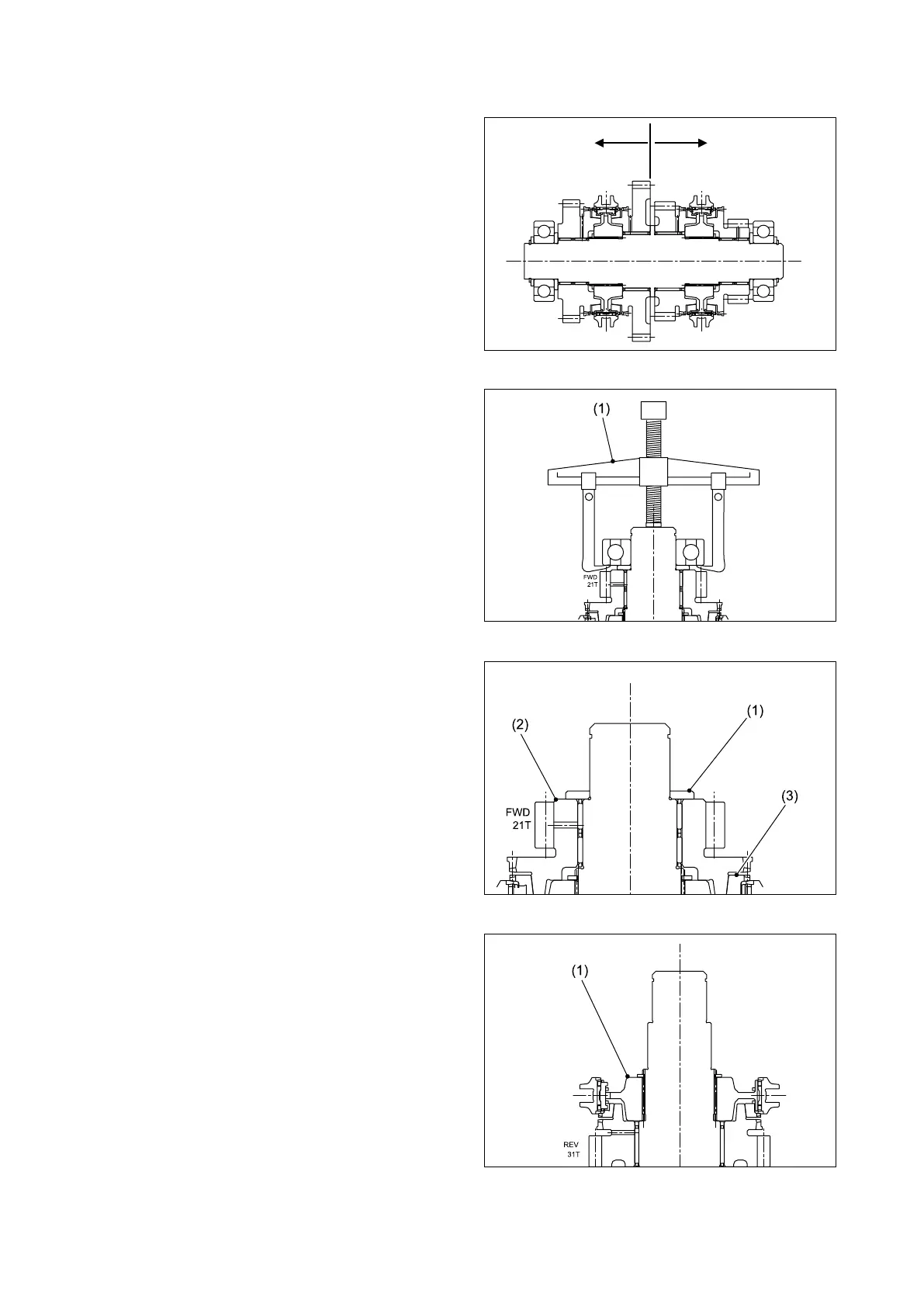

■DISASSEMBLING MAIN SHAFT
The disassembly procedure for the fwd/rev side
of the main shaft will be explained in this section.
The fwd/rev and 1st/2nd speed sides of the main
shaft are similar and therefore this disassembly
procedure pertains to both.
For the purpose of easy reassembly, the component
parts of the main shaft are shown in Fig. 3.192.
① Remove the snap ring from the end of the
main shaft. Using a puller (1), remove the
bearing.
② Remove the thrust washer (1), gear (2), and
block ring (3).
③ Remove the snap ring securing the hub and
then remove the synchronizer assembly (1).
Fig. 3.192
1st/2nd speed side
Fwd/rev side
