3-59

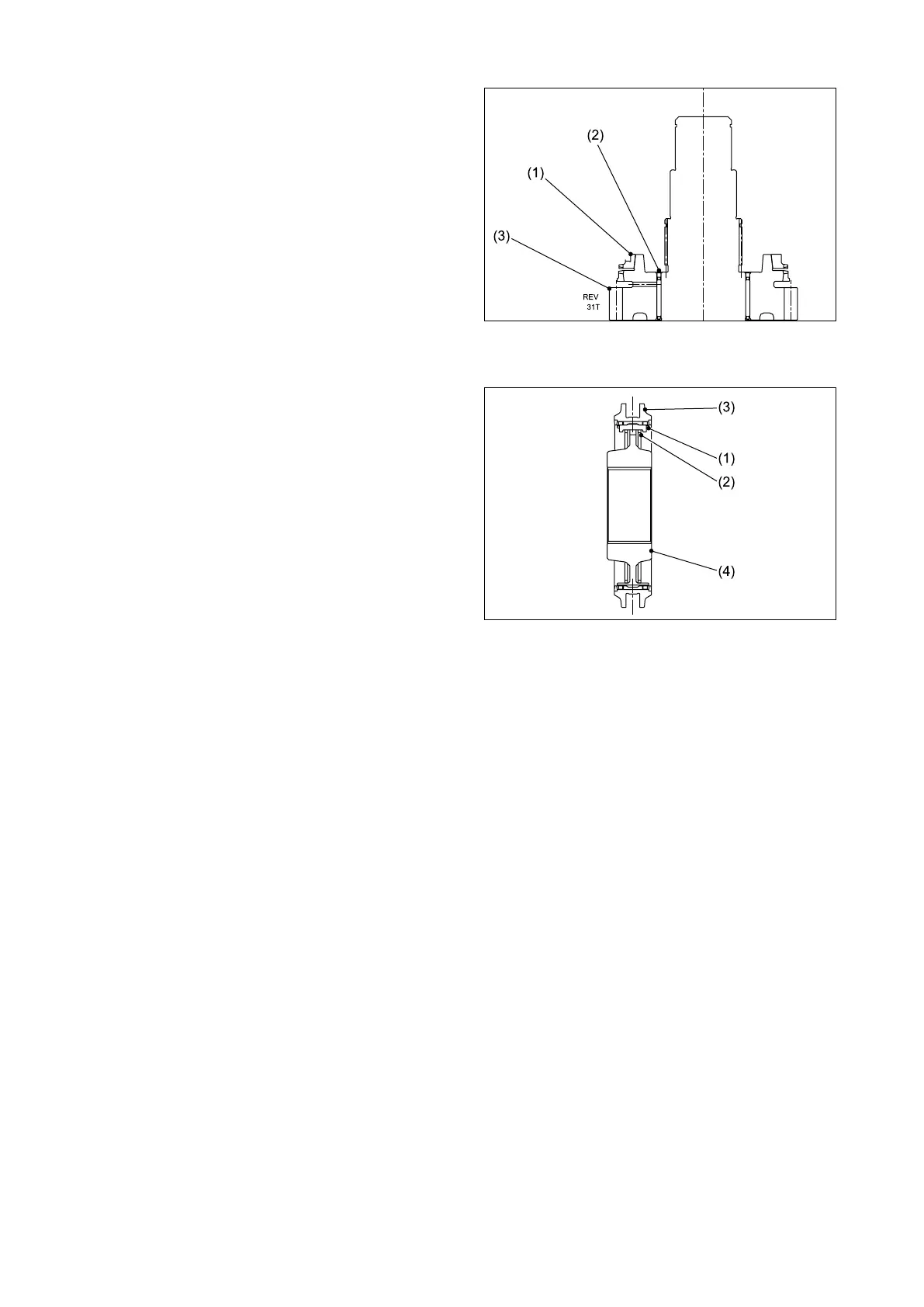

④ Remove the block ring (1), collar (fwd/rev
side only)(2), and gear (3).
⑤ Disassembling synchronizer
1) Remove the synchronizer support springs (2).
Remove the inserts (1) and sleeve (3) from the
hub (4).
2) Disassemble the 1st/2nd speed side of the
main shaft in the same manner.
Fig. 3.196
Fig. 3.197
