3-68

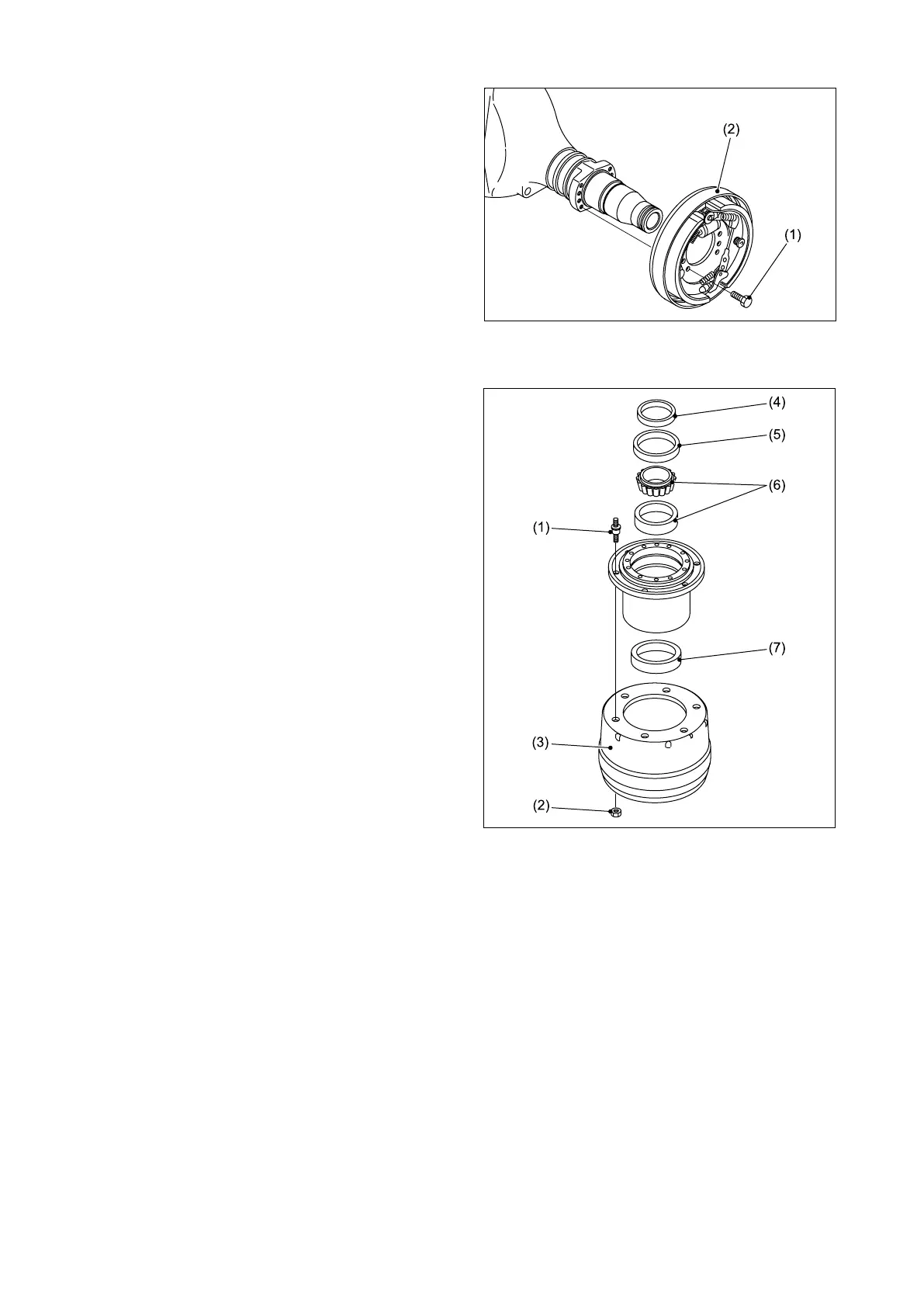

Fig. 3.218
Fig. 3.219
⑤ Remove the bolts (1) and remove the wheel
brake assembly (2).
⑥ Disassembling hub
1) Remove the bolts (1) and nuts (2), and remove
the drum (3).
2) Remove the outer retainer (4) and oil seal (5).
3) Remove the outer tapered roller bearing (6).
Note: Put an identifying mark (or number) on
each set of tapered roller bearings, so that
you can distinguish one set from another.
4) Remove the cup (7) from the inner tapered
roller bearing.
Note: Put an identifying mark (or number) on
each set of tapered roller bearings, so that
you can distinguish one set from another.
