3-69
Fig. 3.222
Fig. 3.221
Fig. 3.220

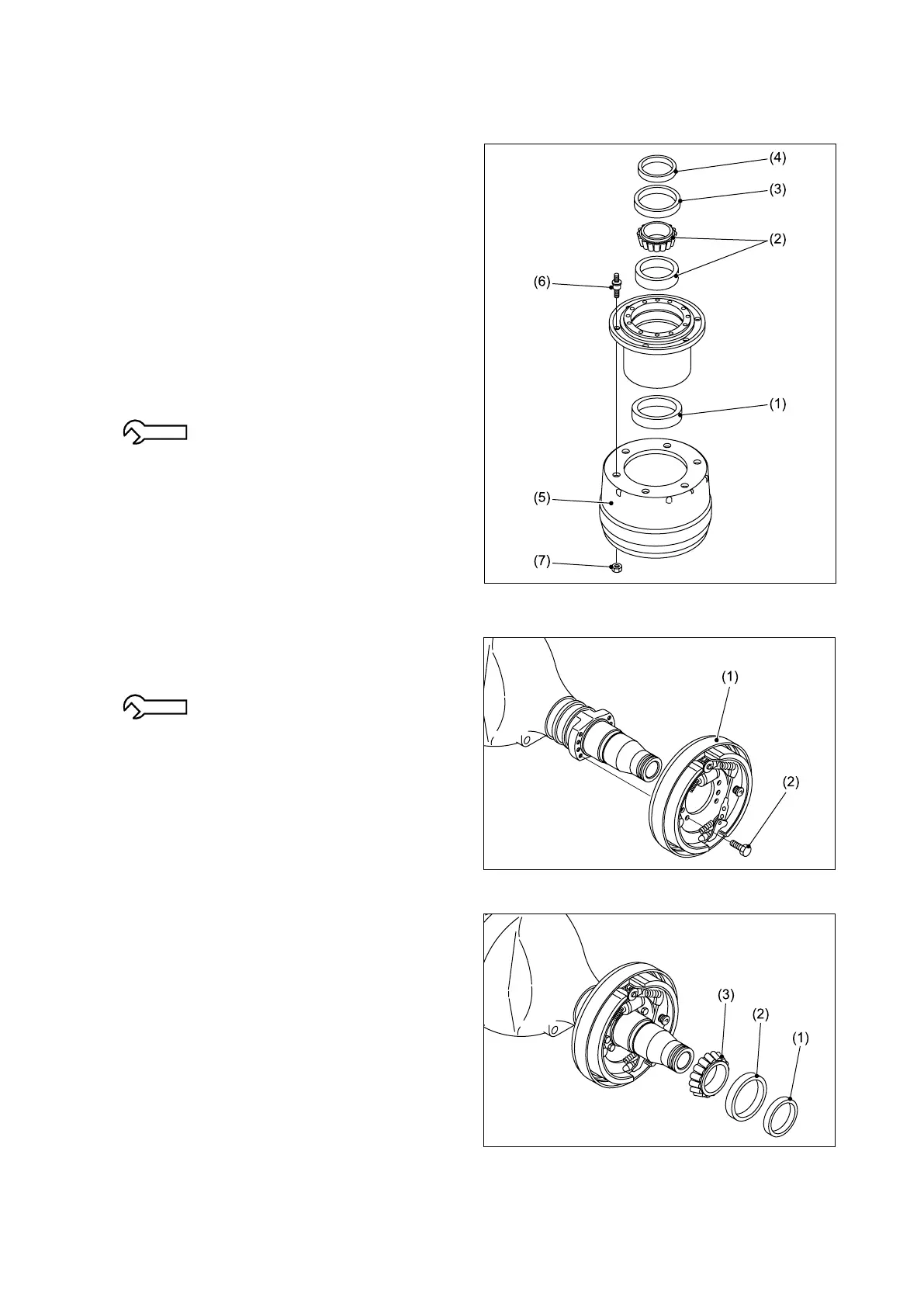

■ REASSEMBLY
① Reassembling hub
1) Install the cup (1) on the inner tapered roller
bearing.
Note: Checktheidenticationmarksmadeduring
disassembly.
2) Install the outer tapered roller bearing (2).
Note: Checktheidenticationmarksmadeduring
disassembly.
3) Install the outer oil seal (3) and retainer (4).
4) Install the drum (5) using the bolts (6) and
nuts (7).
500 N-m {50.0 kgf-m} [368.8 lbf-ft]
② Install the wheel brake assembly (1) using the
bolts (2). Apply LOCTITE#270 to the threads
of the bolts before installing.
275 - 324 N-m {28 - 33 kgf-m}
[202.8 - 239.0 lbf-ft]
③ Install the retainer (1), oil seal (2), and inner
tapered roller bearing cone (3).
