3-75
Fig. 3.240
Fig. 3.243
Fig. 3.242
Fig. 3.241

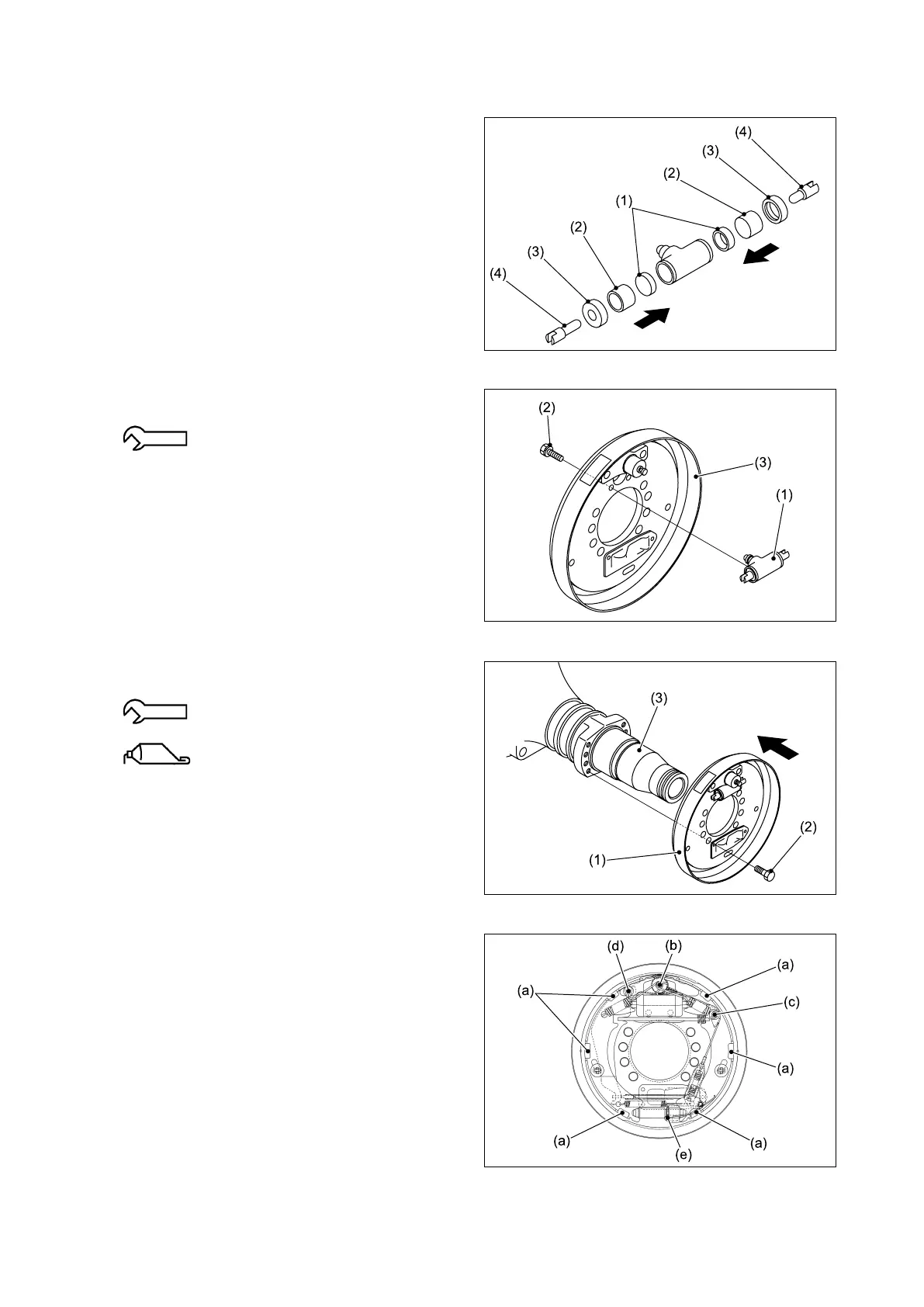

■ REASSEMBLY
① Reassemble the wheel cylinder as follows:
● Applybrakefluidonthe pistoncup(1)and
piston (2).
● Insertthepiston cup (1) and piston(2)into
the cylinder in that order.
● Installthedustcover(3)andpushrod(4)to
each side of the cylinder.
② Install the wheel cylinder (1) to the backing
plate (3) with two bolts (2).
27.3 - 49 N-m {2.8 - 5.0 kgf-m}
[20.1 - 36.1 lbf-ft]
③ Install the backing plate (1) to the drive axle
(3) with eight bolts (2).
274 - 323 N-m {30.0 - 33.0 kgf-m}
[202.1 - 238.2 lbf-ft]
Apply LOCTITE#270.
④ Apply heat-resisting grease to the following
areas (shown in Figure 3.243):
Note: Use caution not to contaminate the lining
with grease.
(a) Backing plate in shoe contact area
(b) Anchor pin
(c) Cable guide in areas which come in
contact with adjuster cable
(d) Parking brake lever pin
(e) Adjuster threads and other rotating parts
To Next Page
