3-77
Fig. 3.248
Fig. 3.251
Fig. 3.250
Fig. 3.249

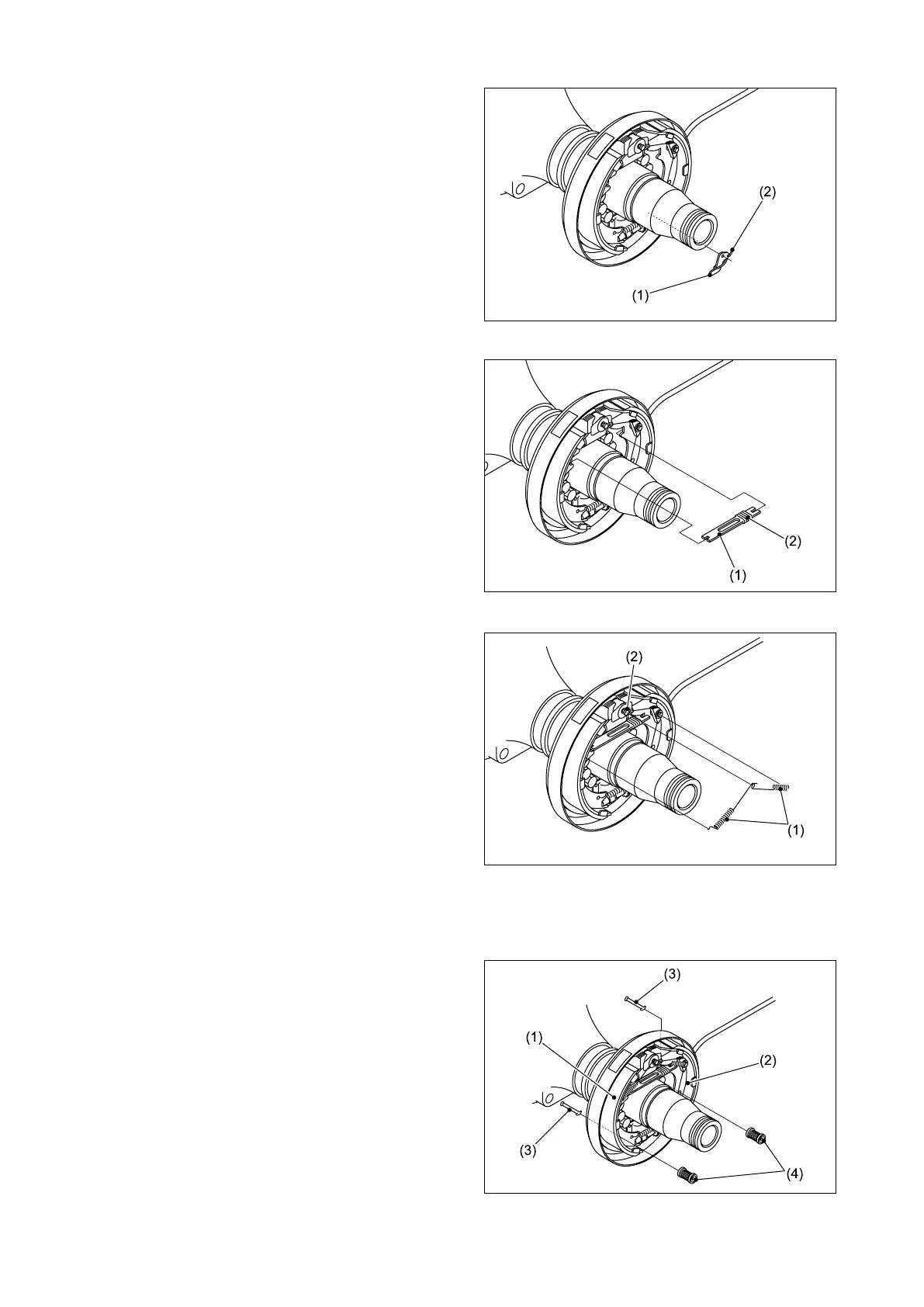

⑨ Install the adjuster lever (1) and spring (2) to
the backing plate.
Make sure the adjuster lever end comes in
contact with the adjuster teeth.
⑩ Install the spring (2) onto the strut (1) and
install the strut between the shoes.
⑪ Install two return springs (1) observing the
following conditions:
● Thereturnsprings shouldbe installed first
to the secondary shoe side, and then to the
primary shoe side.
● The longer hook should beinstalled tothe
anchor pin (2).
⑫ Install the brake pipe to the wheel cylinder.
⑬ Secure the primary shoe (1) and the secondary
shoe (2) in place with the hold pins (3) and
the spring retainers (4).
To Next Page
