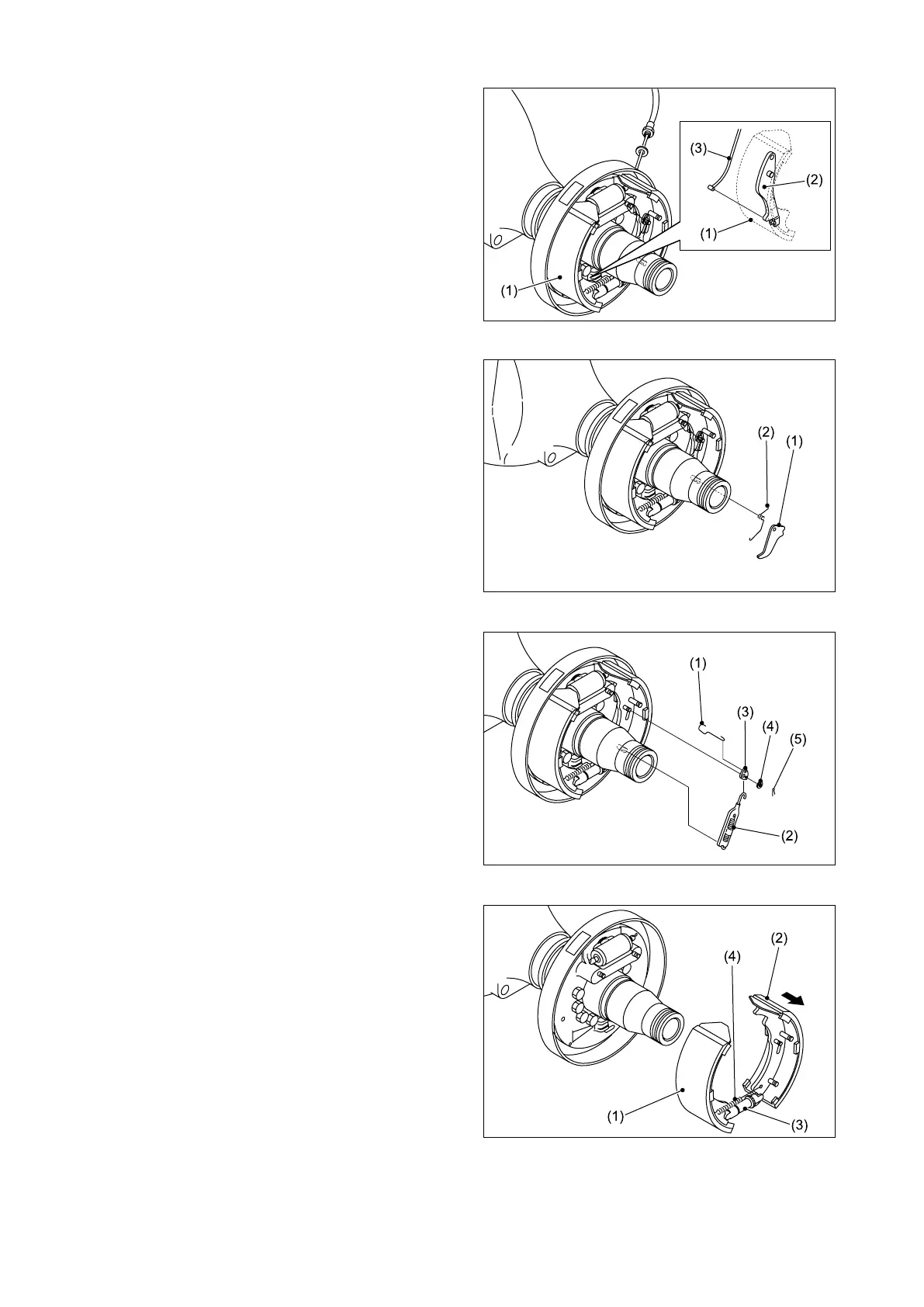

⑤ Remove the parking brake cable (3) from the
parking lever (2) on the primary shoe (1).
⑥ Remove the adjuster lever (1) and spring (2).
⑦ Remove the linkages (1 and 2), lever (3),
washer (4), and split pin (5).
⑧ Remove the primary shoe (1) and secondary
shoe (2) with the adjuster (3) and spring (4)
installed.
