3-83
Fig. 3.263
Fig. 3.266
Fig. 3.265
Fig. 3.264

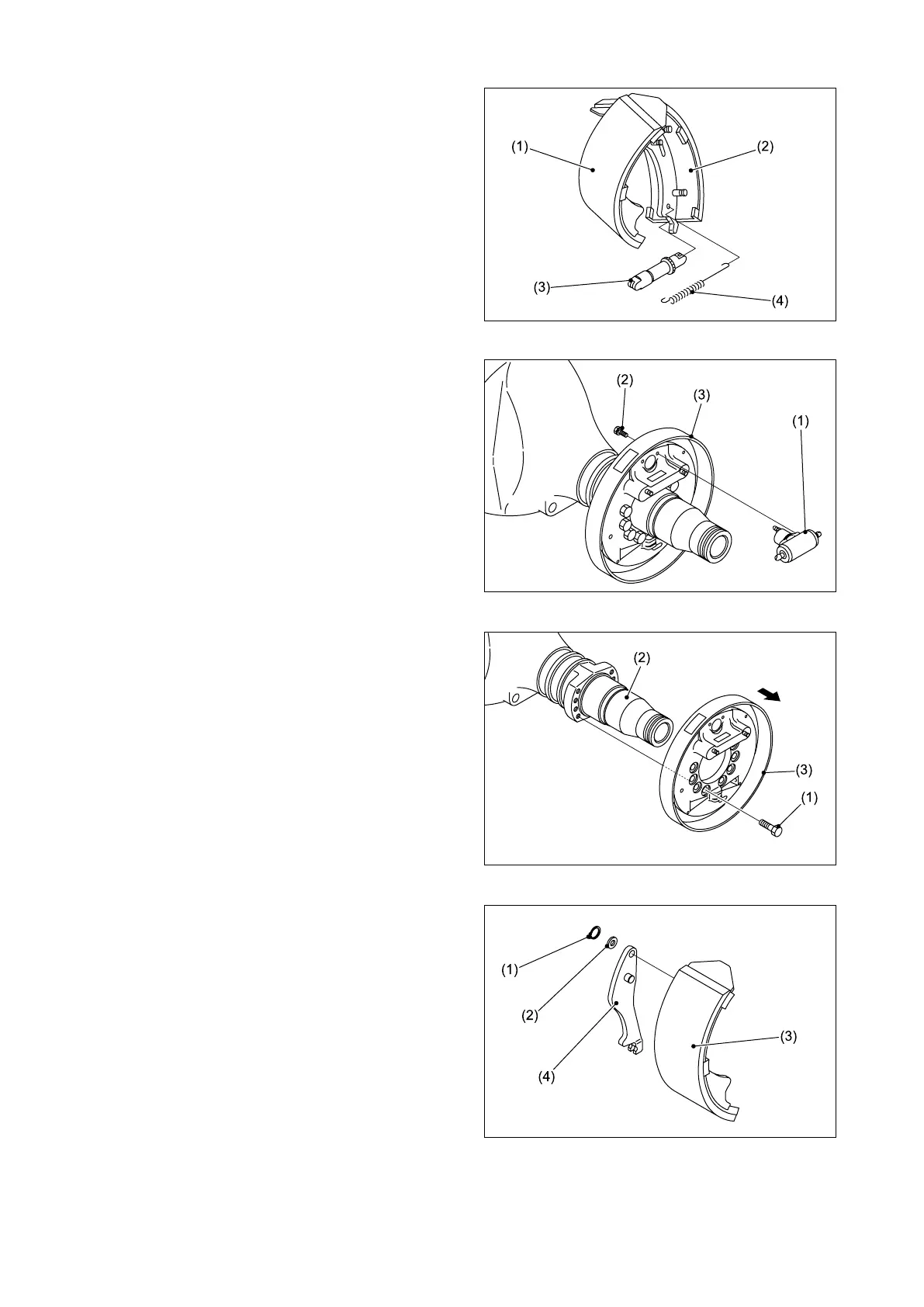

⑨ Twist the primary shoe (1) and secondary
shoe (2) in opposite directions, and remove
the adjuster (3) and spring (4).
⑩ Remove the brake pipe from the wheel
cylinder (1). Remove the two wheel cylinder
mounting bolts (2) and then remove the wheel
cylinder (1) from the backing plate (3).
⑪ Remove the eight backing plate mounting
bolts (1), and then remove the backing plate
(3) from the drive axle (2).
⑫ Remove the retainer (1) and washer (2), and
then remove the brake lever (4) from the
primary shoe (3).
