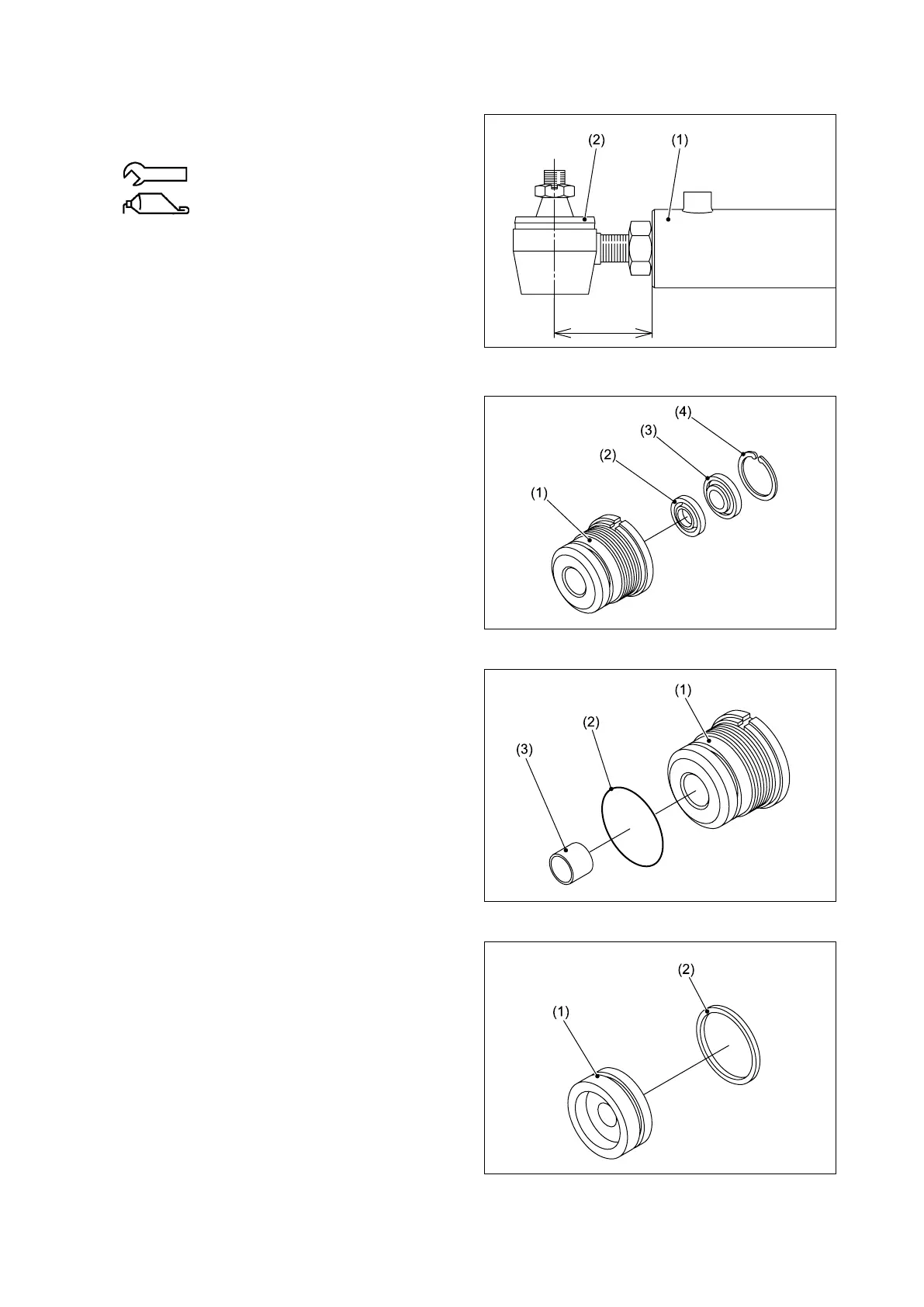

■REASSEMBLY
① Install the ball joint assembly (2) on the tail-
end (1) of the cylinder.
294 N-m {30 kgf-m} [216.8 lbf-ft]
App l y L OCT I TE # 270 on the
threaded part.
② Install the packing (2) and oil seal (3) on the
cylinder cap (1), and secure with the snap ring
(4).
③ Install the “O”-ring (2) and bushing (3) on the
cylinder cap (1).
④ Install the slipper seal (2) on the piston (1).
Fig. 3.326
77.5 mm
[3.051 in.]
