3-103
Fig. 3.333
Fig. 3.332
Fig. 3.331

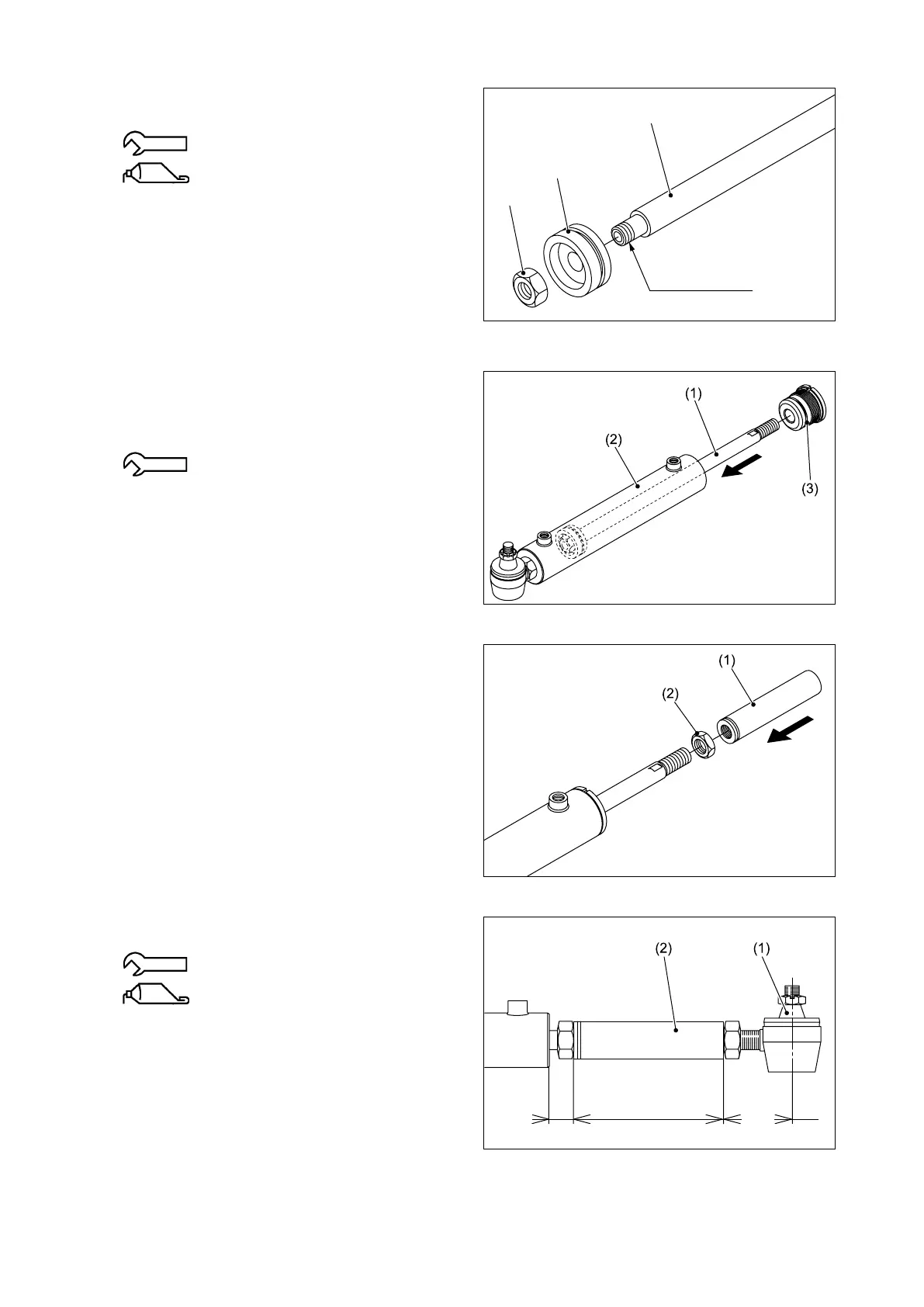

⑤ Install the piston (1) on the rod (2) using the
nut (3).
167 N-m {17 kgf-m} [123.2 lbf-ft]
App l y L OCT I TE # 270 on the
threaded part.
⑥ Insert the rod assembly (1) into the cylinder (2)
and install the cylinder cap assembly (3) on
the cylinder (2). Stake the cylinder (2) at one
place.
98 N-m {10 kgf-m} [72.3 lbf-ft]
⑦ Install the rod (1) and secure with the nut (2).
⑧ Install the ball joint assembly (1) on the rod
(2).
294 N-m {30 kgf-m} [216.8 lbf-ft]
App l y L OCT I TE # 270 on the
threaded part.
Fig. 3.330
Apply liquid seal.
Unit: mm [in.]
51.5
[2.028]
82
[3.228]
65
[2.559]
To Next Page
