3-105
Fig. 3.338
Fig. 3.341
Fig. 3.340
Fig. 3.339

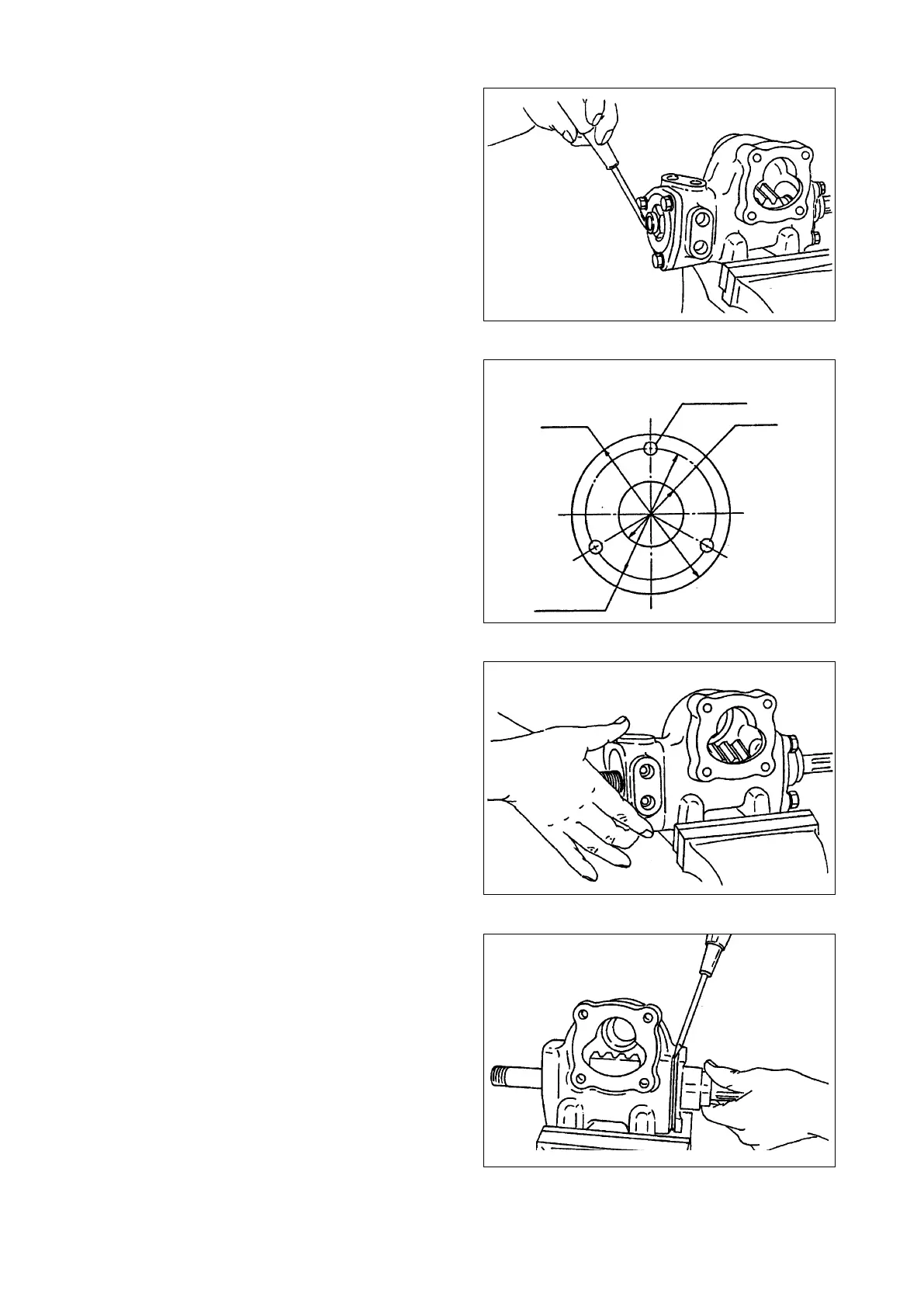

⑤ Install the jig (Figure 3.339), as shown in
Figure 3.338.
Raise the staked portion of the lock nut using
a screwdriver and remove the thrust race and
thrust bearing.
⑥ Remove the three bolts by loosening them
alternately, so that the jig does not tilt. Use
caution not to allow the action piston to drop
out.
Make sure to hold the control valve with one
hand while removing each bolt. Failure to do
so will cause the control valve to drop out of
the gear box.
⑦ Remove the bolts securing the top cover.
Remove the top cover by prying it carefully
with a screwdriver. Use caution not to damage
the “O”-ring.
Unit: mm [in.]
110 [4.3]
87±0.2
[3.4±0.008]
3 - 10.5Ø [0.118 - 0.413Ø]
54 [2.1]
Thickness:
3 [0.118]
