3-117

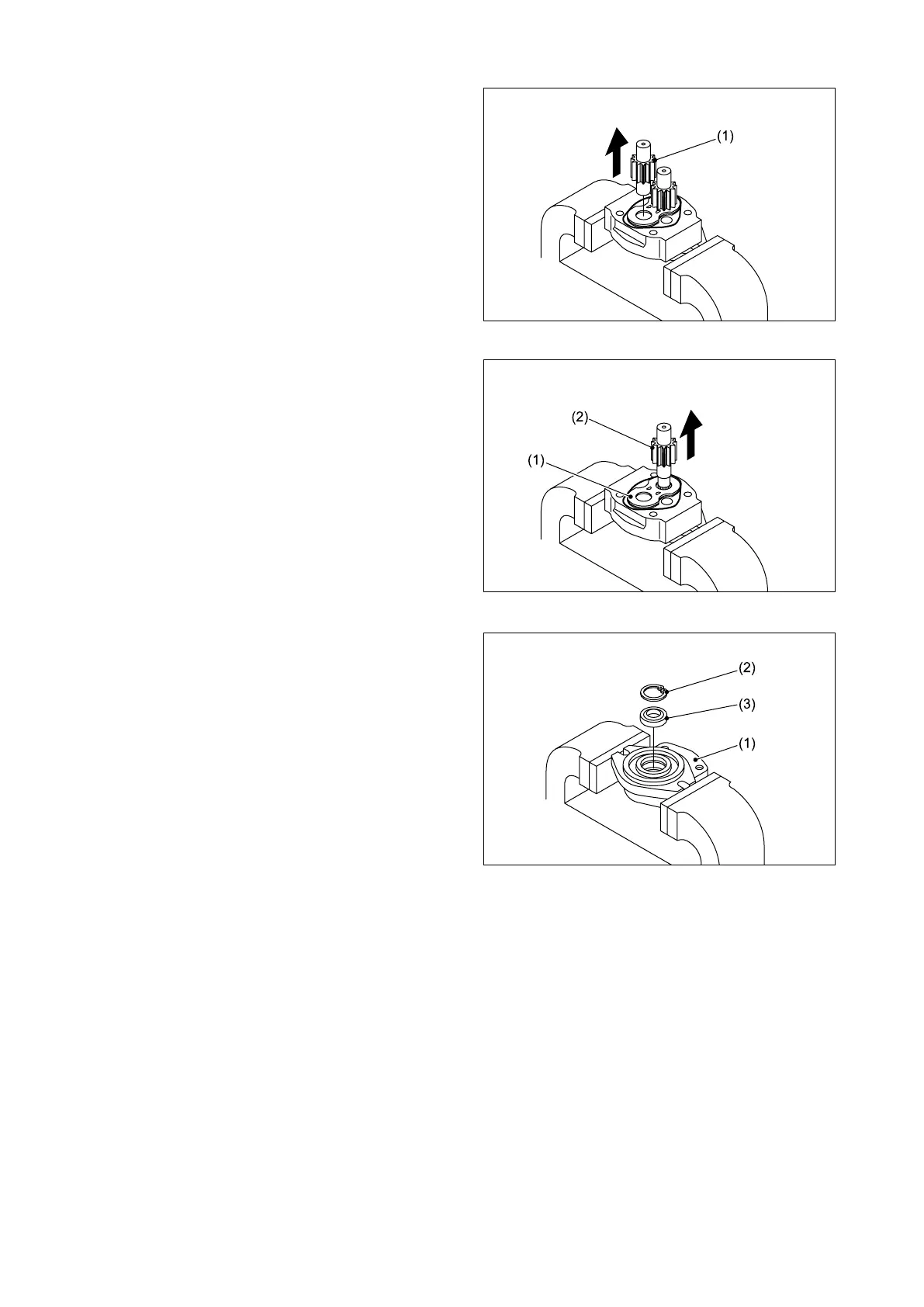

Fig. 3.382
Fig. 3.384
Fig. 3.383
⑬ Put the mark “R1” on the driven gear (1) shaft
end and remove the driven gear (1).
⑭ Holding the front side plate (1), remove the
drive gear (2).
⑮ Turn over the front cover (1) and hold it again
in the vise. Remove the snap ring (2) and oil
seal (3).
