TCM FD35C9 - Page 230

3-116
Fig. 3.378
Fig. 3.381
Fig. 3.380
Fig. 3.379

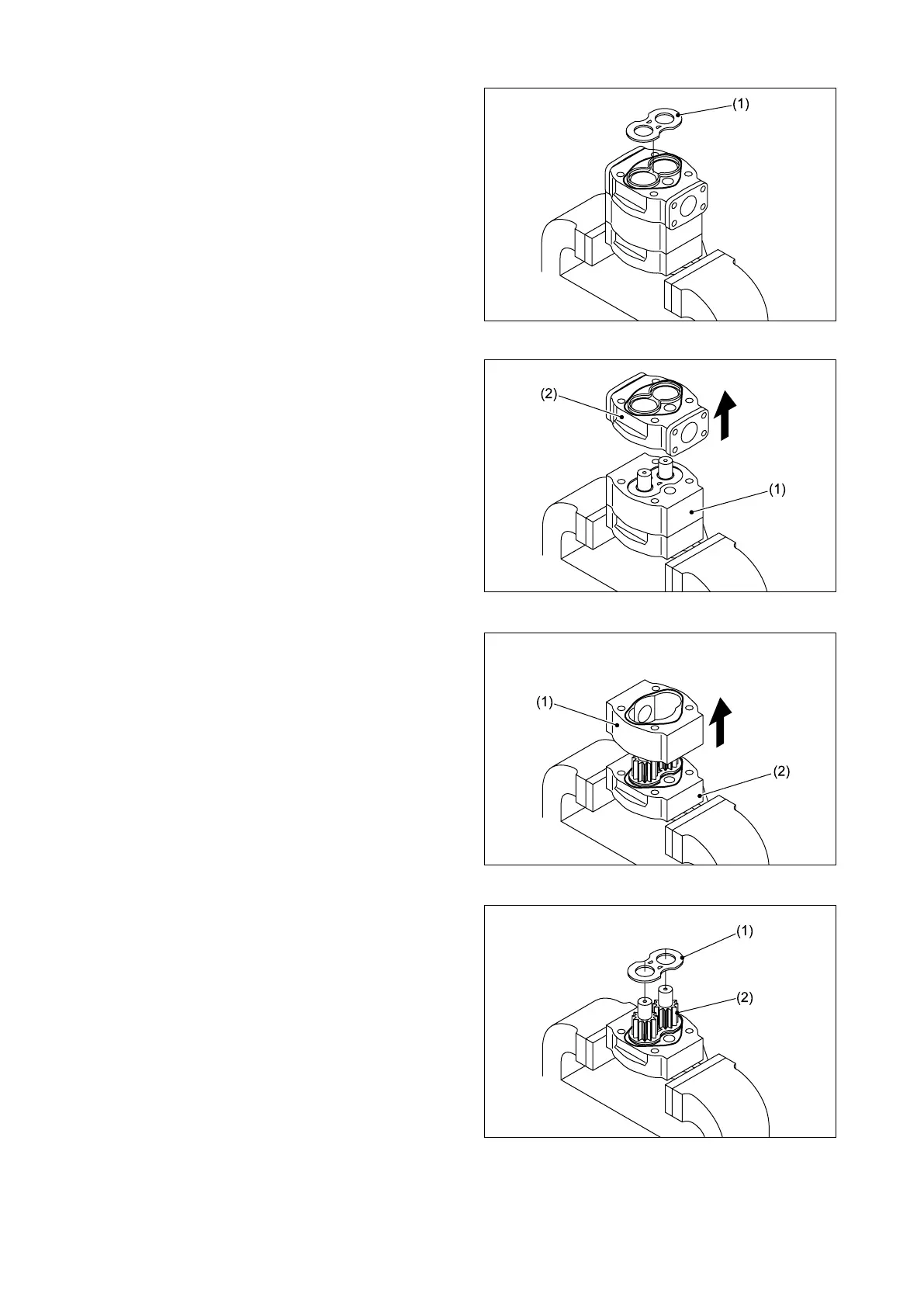

⑨ Put the mark “FV2” on the adapter side plate
(1) at the drive gear side, and remove the side
plate (1).
⑩ Remove the adapter (2) by tapping the side
face of the pump body half 1 (1) with a plastic
mallet.
If the gaskets remain inside the pump body
half 1 (1), move them toward the adapter (2)
side.
⑪ Remove the pump body half 1 (1).
If the gaskets remain inside the pump body
half 1 (1), move them toward the front cover
(2) side.
⑫ Put the mark “RV1” on the adapter side plate
(1) at the drive gear (2) side before removing
the side plate (1).
