3-120
Fig. 3.385
Fig. 3.388
Fig. 3.387
Fig. 3.386

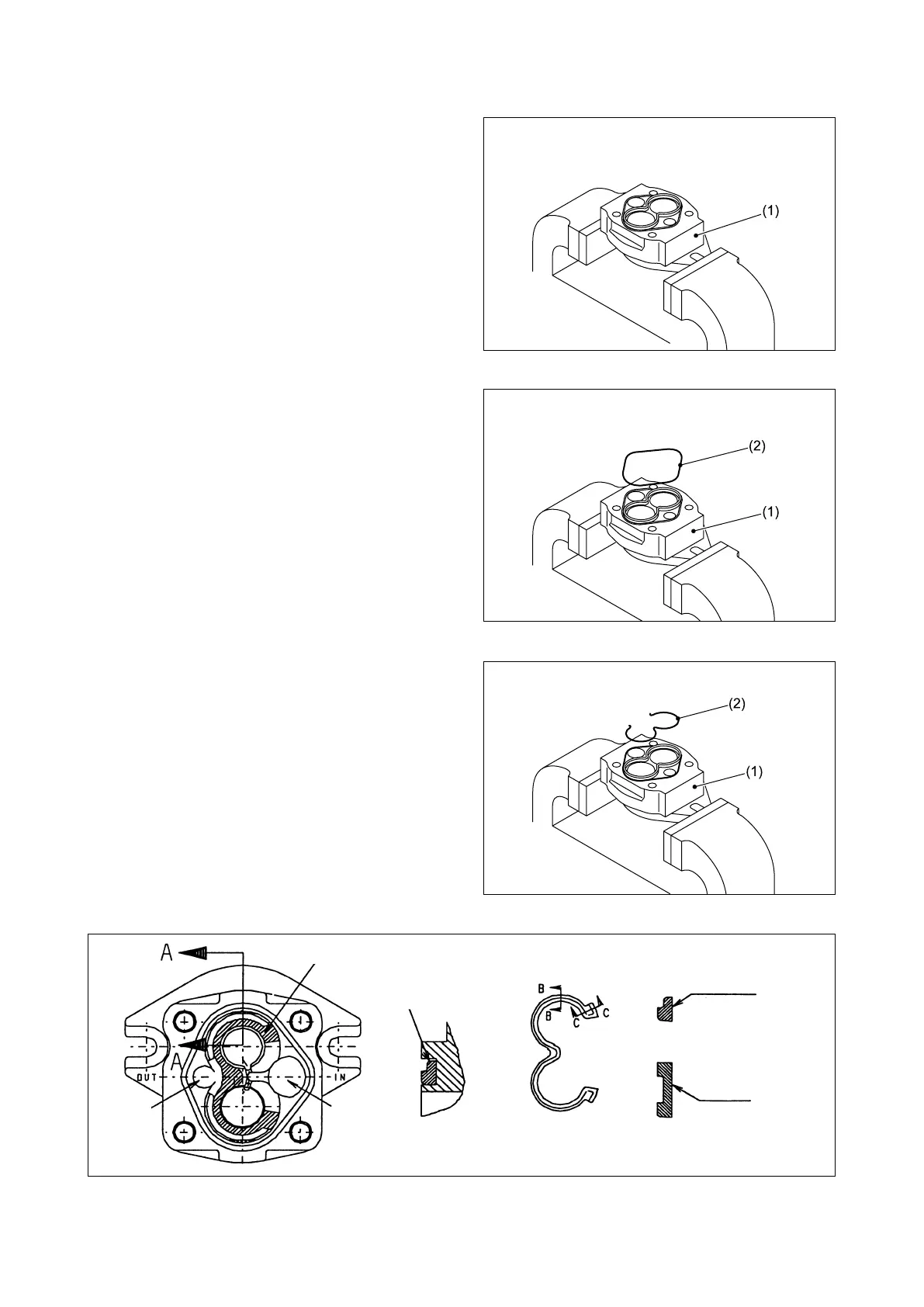

■PUMP REASSEMBLY
① As shown in Fig. 3.385, hold the front cover
(1) in a vise.
② Install a new gasket (2) in the groove in the
front cover (1).
Note: Use caution not to twist the gasket.
③ Install a new “E” gasket (2) in the groove in
the front cover (1), referring to Fig. 3.388.
Discharge
side
“E” gasket groove
The “E” gasket should
be installed with its at
surface pointing to the
bottom of the groove.
Suction
side
(b) “E” gasket
Discharge
side
Suction
side
Flat surface
B-B section
Flat surface
C-C section
A-A section
To Next Page
