3-127
Fig. 3.411
Fig. 3.414
Fig. 3.413
Fig. 3.412

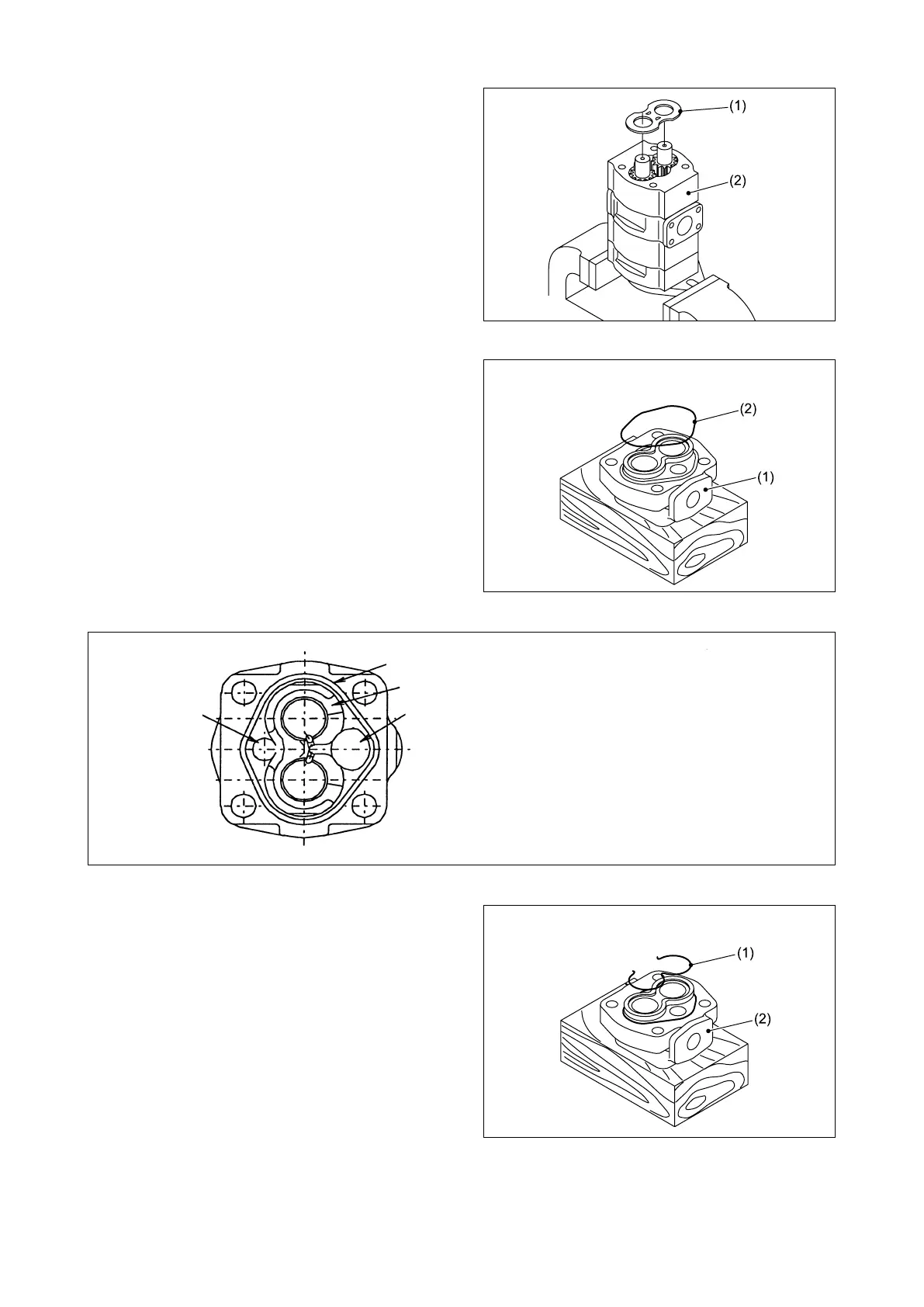

⑱ Install the rear side plate (1) in the pump body
half 2 (2), as shown in Fig. 3.407.
⑲ Apply grease on a new gasket (2) in some
points and install the gasket (2) in the rear
cover (1) groove.
⑳ Install the “E” gasket (1) on the rear cover (2),
as shown in Fig. 3.403.
Gasket groove
“E” gasket
Suction sideDischarge side
The rear cover is commonly used for the “L”
(counterclockwise rotation) type and the “R”
(clockwise rotation) type. Align the discharge
side with the suction side.
