3-128
Fig. 3.415
Fig. 3.419
Fig. 3.417
Fig. 3.416
21

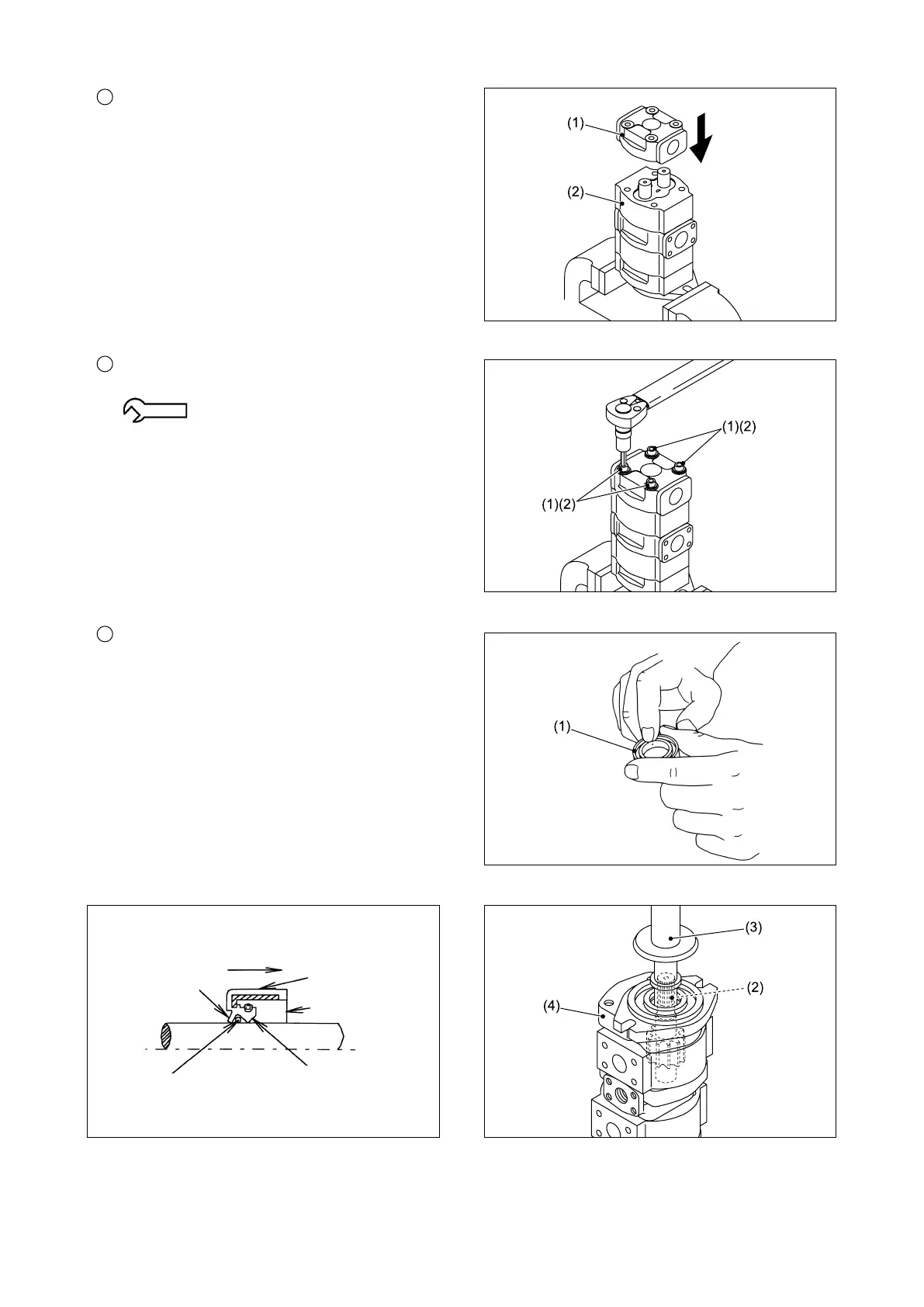

Install the rear cover (1) in the pump body
half 2 (2) with its gasket pointed downward.
22
Install the four bolts (1) and spring washers
(2),andtightenthemtothespeciedtorque:
88 - 98 N-m {9 - 10 kgf-m}
[65.1 - 72.3 lbs-ft]
23
Remove the pump from the vise and put it on
a work bench.
Apply grease on the area between the lips and
on the outer diameter of a new oil seal (1).
Install it on the oil seal guide shown in Fig.
3.422.
Put it on the drive shaft (2) of the pump, and
install the oil seal (1) onto the front cover (4)
with an oil seal snap (3).
Fig. 3.418
Apply a thin coat
of grease on outer
diameter of oil seal.
Oil seal
Main lip
Apply grease area
between oil seal lips.
Dust lip
Direction in which oil
seal is installed.
To Next Page
