2-5
Fig. 2.16
Fig. 2.17
Fig. 2.18

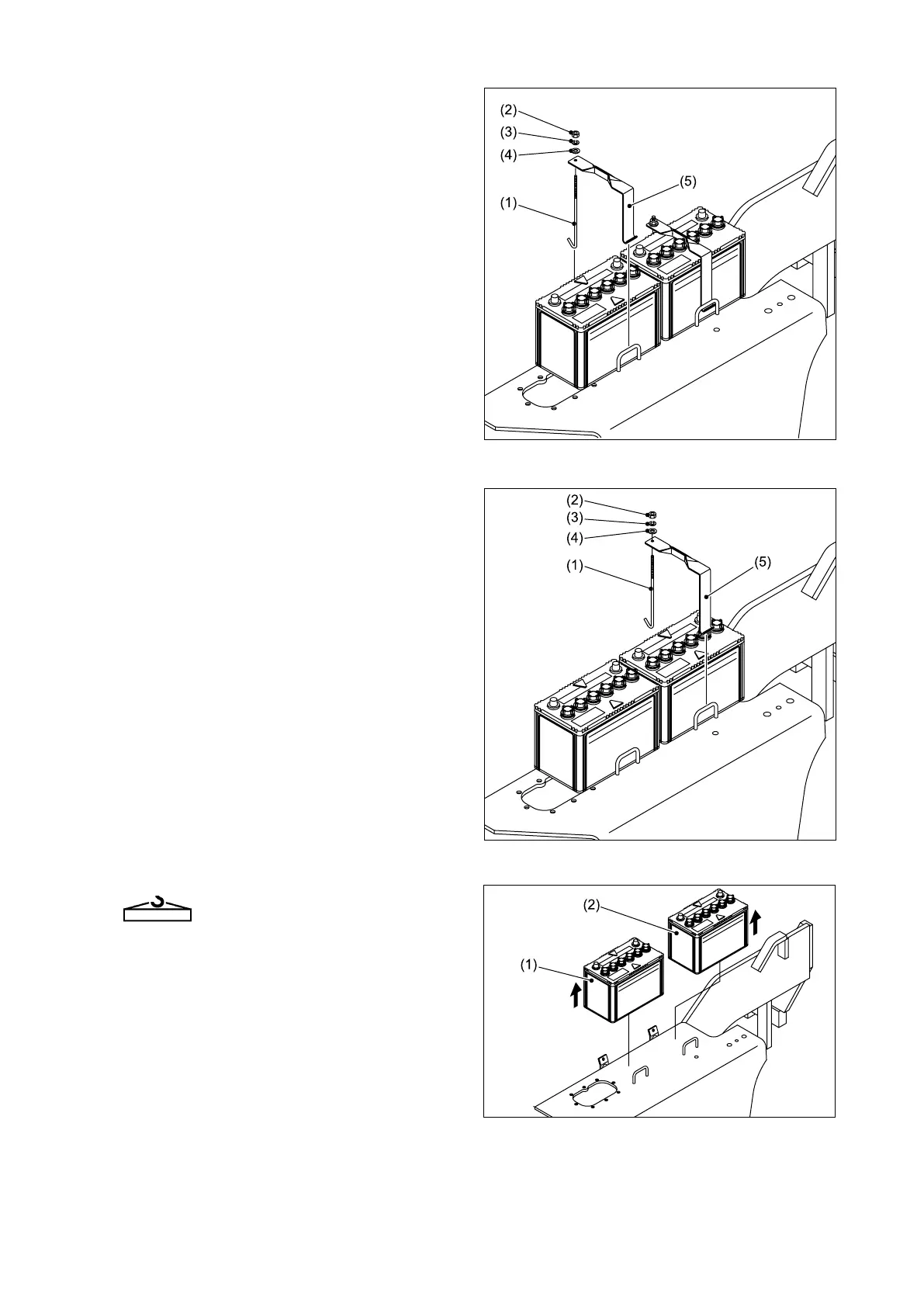

④ Remove the nut (2), spring washer (3) and
washer (4) from the battery 1’s anchor bolt (1),
and then remove the battery holder (5).
⑤ Remove the nut (2), spring washer (3) and
washer (4) from the battery 2’s anchor bolt (1),
and then remove the battery holder (5).
⑥ Remove the batteries 1 (1) and 2 (2).
18.5 kg [40.8 lbs] (243C2-40151)
