2-6
Fig. 2.19
Fig. 2.20
Fig. 2.21

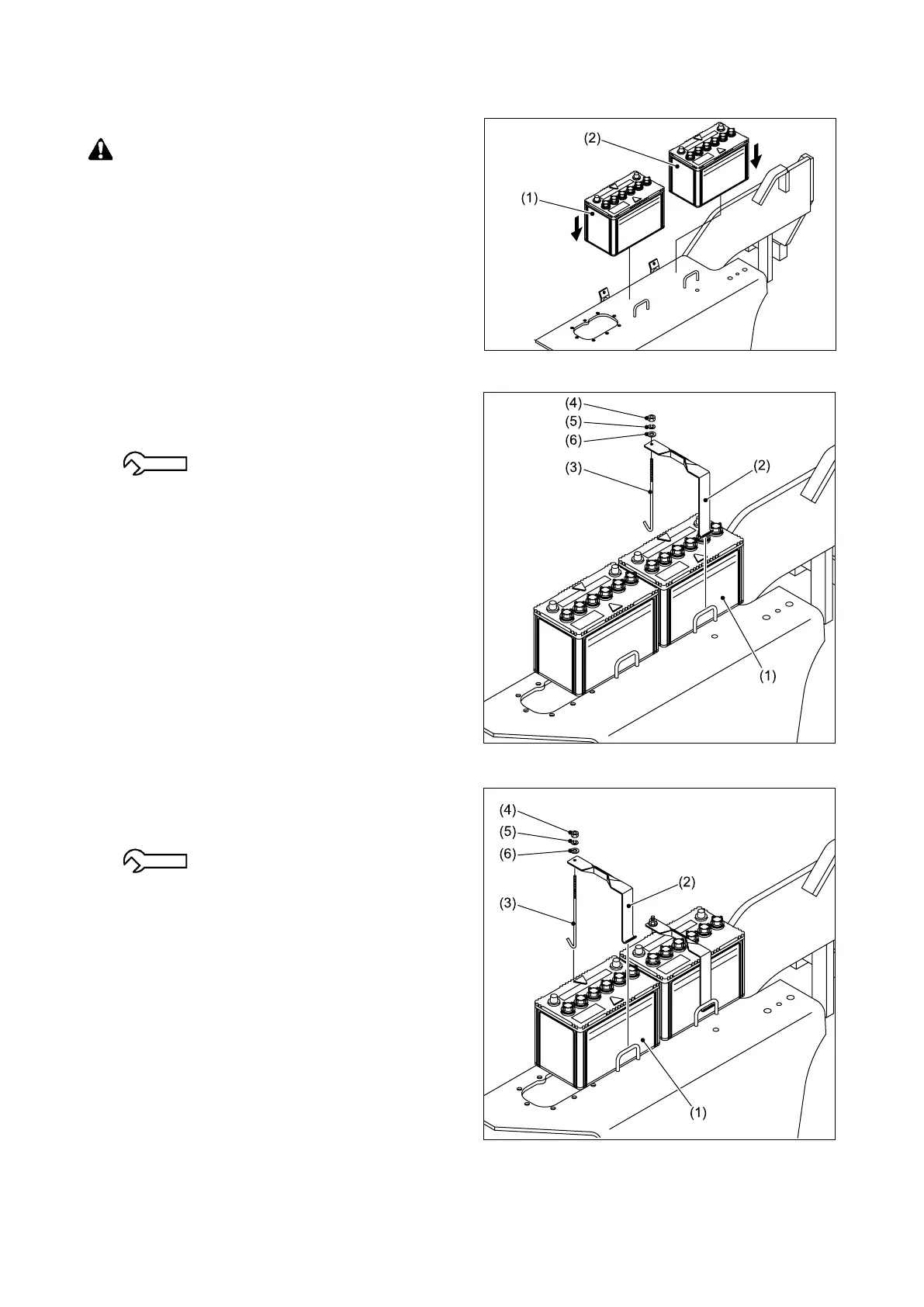

■ REINSTALLATION (diesel trucks)
① Put the batteries 1 (1) and 2 (2) in place.
Pay attention to the direction of the
terminals.
② Install the battery holder (2) and anchor bolt
(3) on the battery 2 (1), and secure them using
the nut (4), spring washer (5), and washer (6).
2.9 - 4.8 N-m {0.3 - 0.5 kgf-m}
[2.4 - 3.5 lbf-ft]
③ Install the battery holder (2) and anchor bolt
(3) on the battery 1 (1), and secure them using
the nut (4), spring washer (5), and washer (6).
2.9 - 4.8 N-m {0.3 - 0.5 kgf-m}
[2.4 - 3.5 lbf-ft]
