2-23

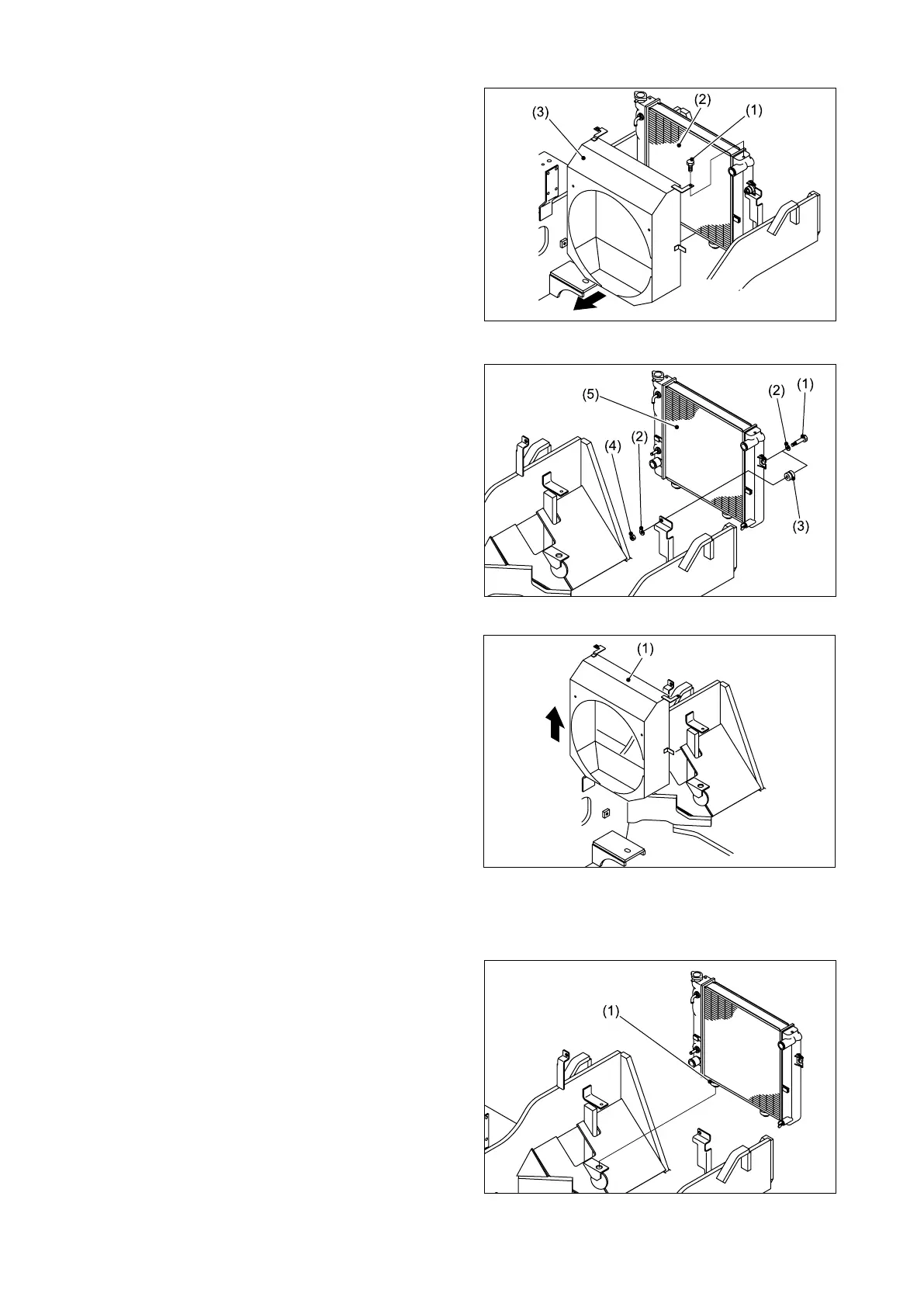

Fig. 2.64
Fig. 2.65
Fig. 2.67
Fig. 2.66
⑥ Remove the fan shroud mounting bolts (1)
and then separate the fan shroud (3) from the
radiator (2).
Bring the removed fan shroud near the engine.
⑦ Remove the bolts (1), washers (2), rubber
cushions (3), and nuts (4) that secure the
radiator in place, and then remove the radiator
(5).
⑧ Remove the fan shroud (1).
■ REINSTALLATION
① Place the fan shroud on the fan of the engine.
② Align the rubber cushions (1) with the holes
in the frame.
To Next Page
