2-24
Fig. 2.68
Fig. 2.71
Fig. 2.70
Fig. 2.69

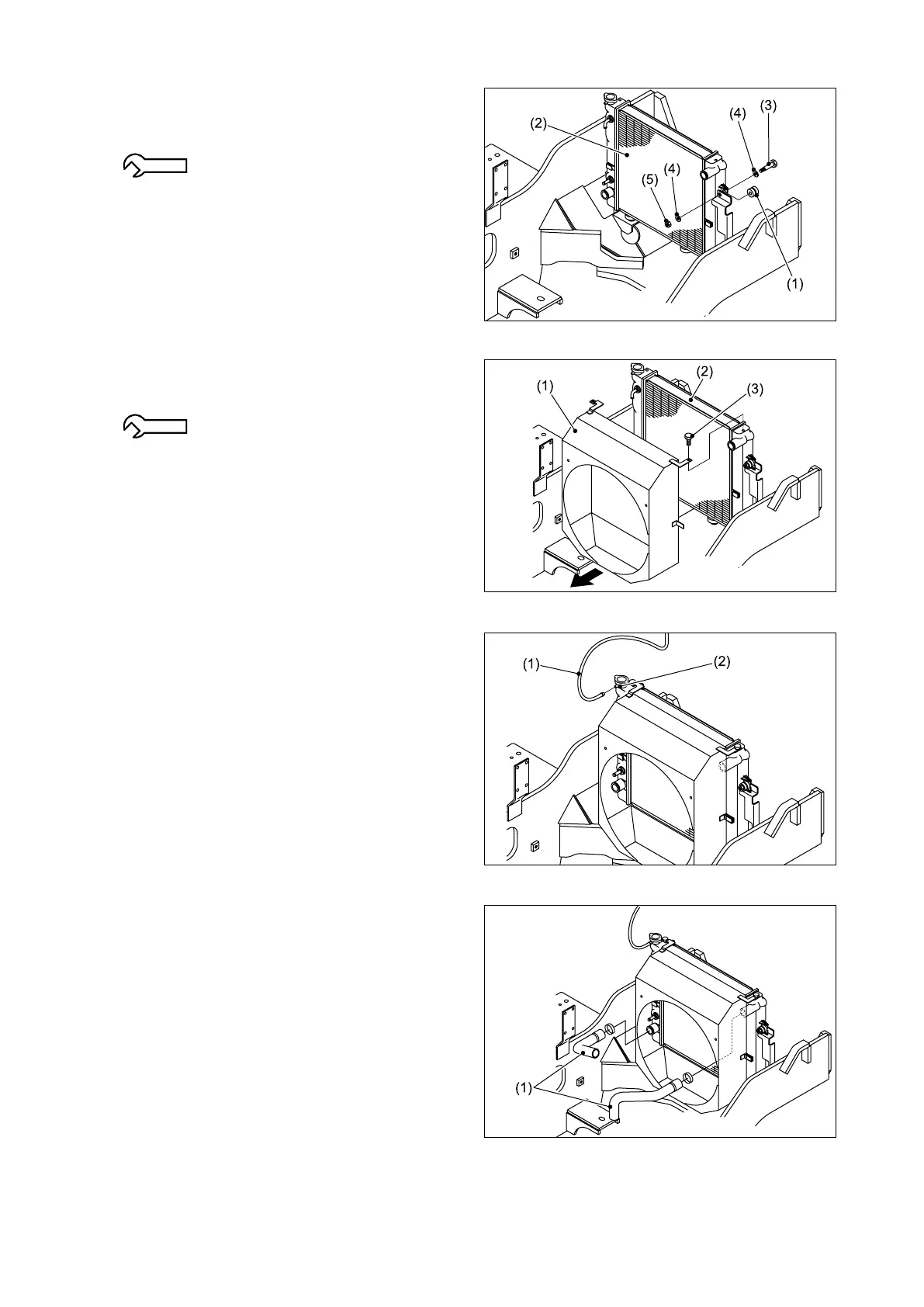

③ Install the radiator (2) with the rubber
cushions (1) and then secure it using the bolts
(3), washers (4), and nuts (5).
7.8 - 11.7 N-m {0.8 - 1.2 kgf-m}
[5.8 - 8.6 lbf-ft]
④ Align the hook of the fan shroud (1) with the
guide located at the center of the tank of the
radiator (2). Secure it using the bolts (3).
7.8 - 11.7 N-m {0.8 - 1.2 kgf-m}
[5.8 - 8.6 lbf-ft]
⑤ Connect one end of the hose (1) leading from
the reserve tank, to the radiator cap (2).
⑥ Connect the radiator hoses (1).
For an automatic transmission truck, connect
the oil cooler hose as well.
⑦ Tighten the drain plug securely. Add the same
amount of coolant as was drained during
removal.
⑧ I n s tall the counterwei g h t . ( S e e “ 2 . 4
COUNTERWEIGHT.”)
⑨ Install the radiator cover. (See Fig. 2.61.)
