2-49
Fig. 2.125
Fig. 2.128
Fig. 2.127
Fig. 2.126

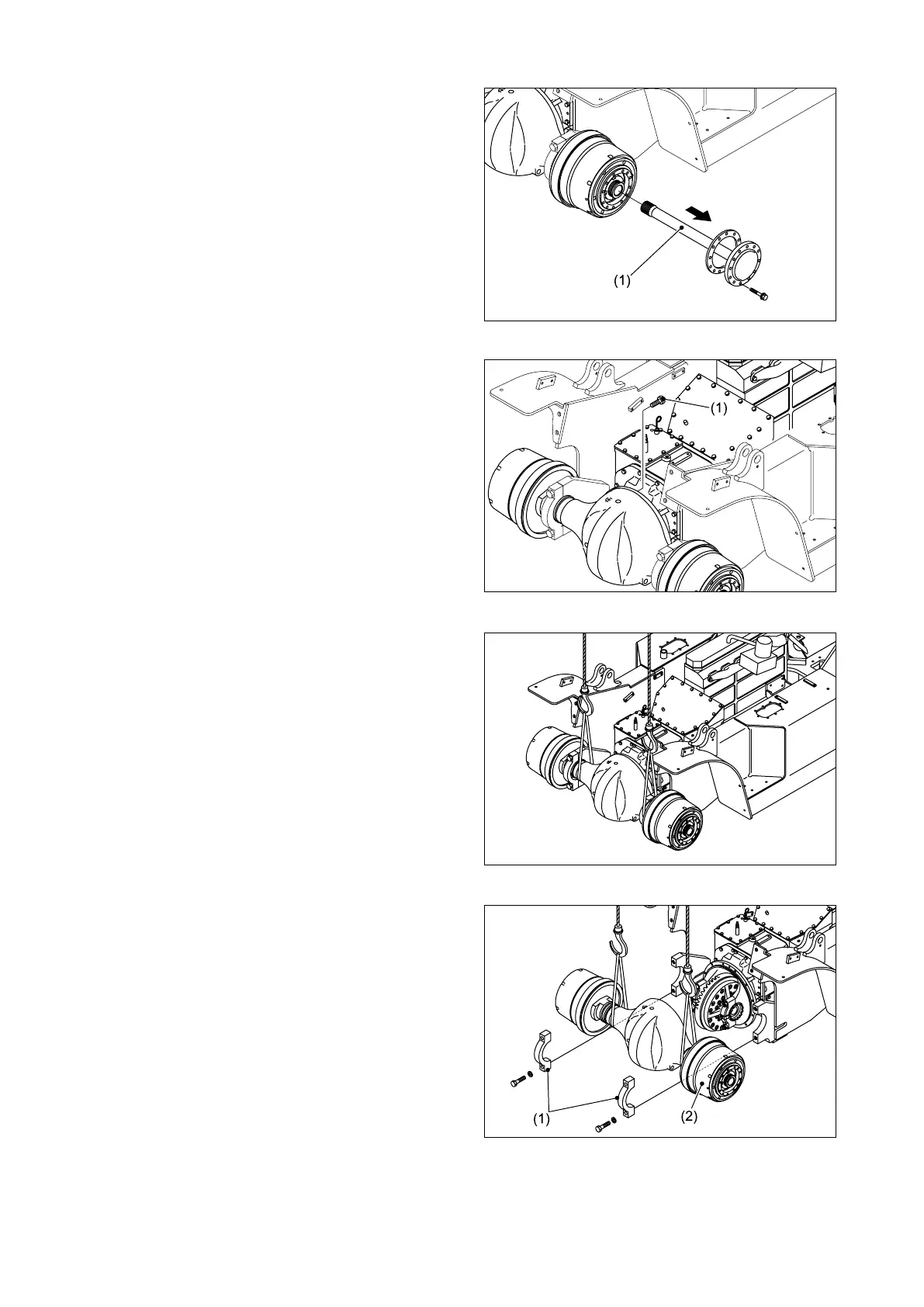

⑦ Remove the axle shafts (1).
⑧ Support the transmission and then remove
the bolts (1) that connect the drive axle to the
transmission.
⑨ Support the drive axle with a crane and wire
ropes.
⑩ Remove the support caps (1) from the frame
and then remove the drive axle (2).
To Next Page
