2-50
Fig. 2.129
Fig. 2.132
Fig. 2.131
Fig. 2.130

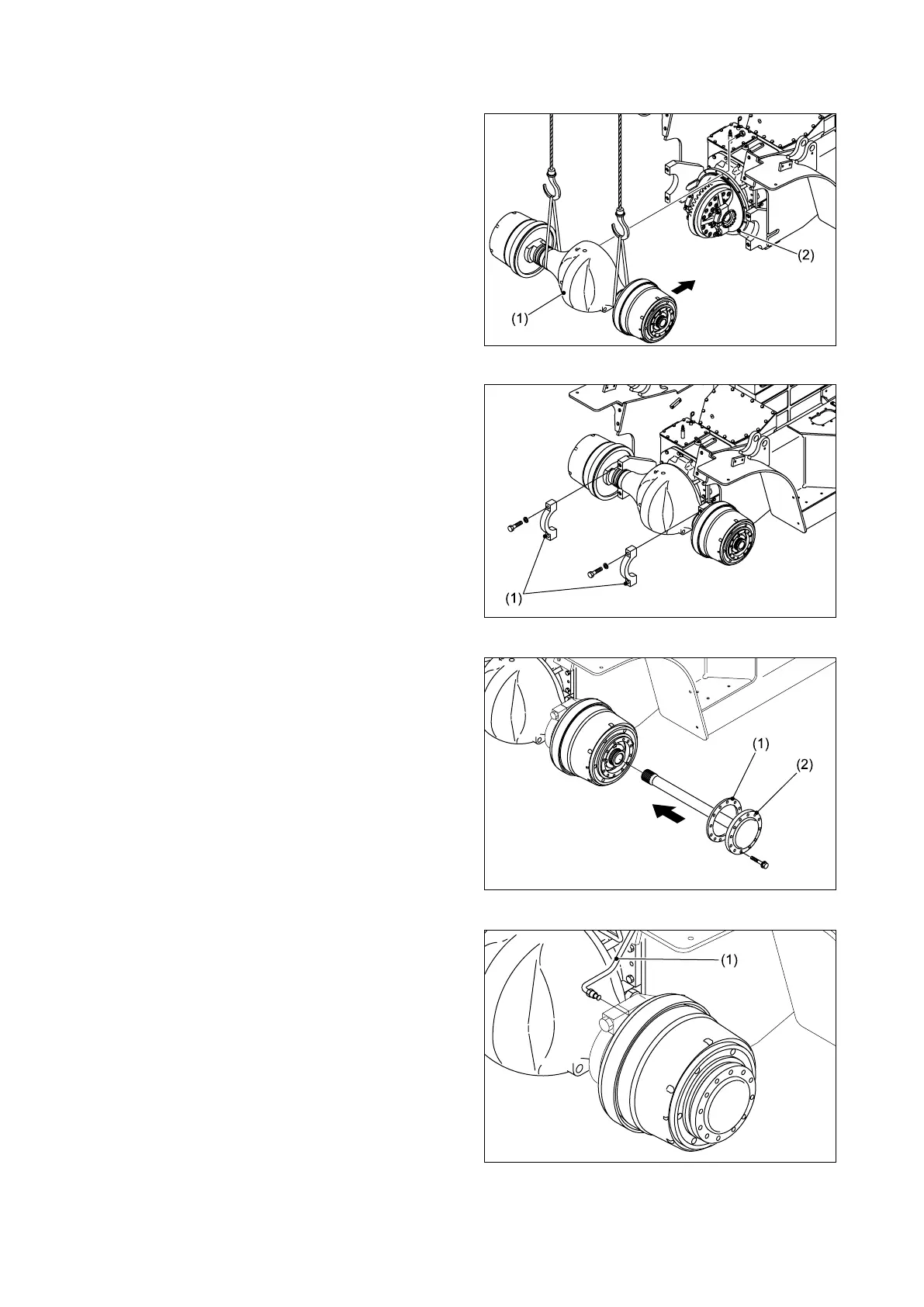

■ REINSTALLATION
① Hold the drive axle (1) near the position of the
frame where the drive axle is to be installed.
② Apply liquid gasket to the fitting surface of
the drive axle (1), and then install the drive
axle (1) on the transmission (2).
③ Secure the drive axle to the frame using the
support caps (1).
④ Install the axle shafts (2) using a new gaskets
(1).
⑤ Install the brake pipes (1).
To Next Page
