Conditions for metered and calibrated DISCHARGE processes.
The following conditions must be fulfilled for a metered discharge process to take place:
• The fuel level is within the range of the dip table and the slope table.
• The foot valve is open.
• The wet-leg sensor is wet.
• The slope angles for the Pitch and Roll slope are within the configured range with regard to
calibration (i.d.R. +/- 3,0°).
IMPORTANT:
If this is not the case, an 'F' will be displayed above the compartment number.
Conditions for unmetered DISCHARGE processes.
Unmetered discharge processes can occur under the following conditions:
• The fuel level is outside the range of the dip table and the slope table.
• The slope angles for the longitudinal and transversal slope are outside the permissible
configured range. (i.d.R. +/- 5,0°).
IMPORTANT:
Sensor failure will also lead to an unmetered discharge process!
The line valve is automatically opened and the following screen appears:
4

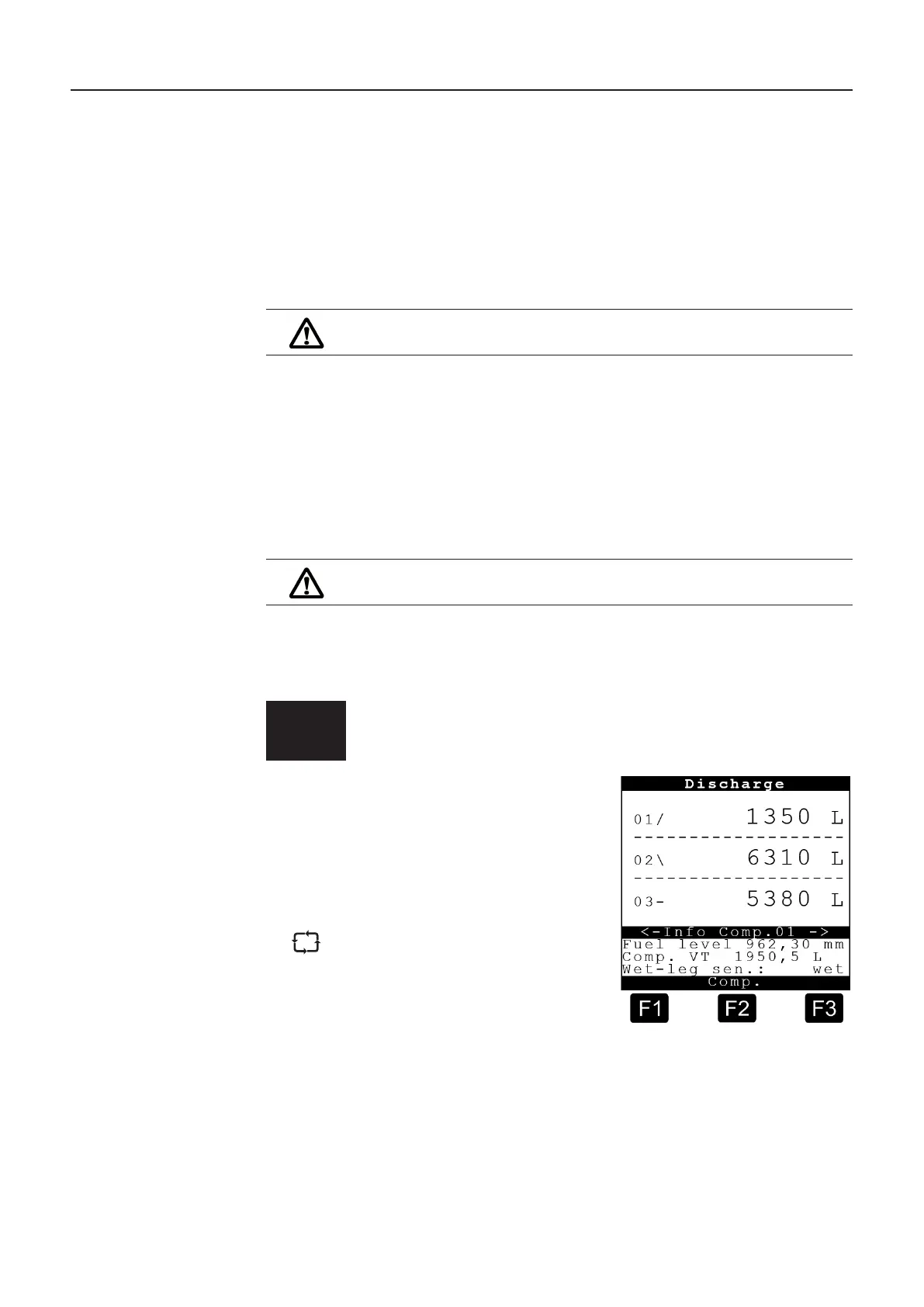

Screen during the discharge process
Operation:
Press <F2> to call information on the
other compartments.
information.
(/) to the right of the compartment number
starts to move clockwise; the discharged
volume is updated.
MultiLevel Instruction Manual Quick Start
