6-6
REPAIR PARTS
The Model 1750 has no user replaceable parts except for the accessories listed in Section 1 and the
following items:
Periodically check the fan filter to be sure that it is not obstructed by dirt. If so, clean or replace the
filter.
Replaceable Fan Filter
TEGAM P/N#378175000
Qualtech Electronics P/N#09250-F/45
Instructions for Fuse Replacement
Remove the line cord from the black input module. The fuses are located in the top compartment of
this module. Remove the fuses by inserting a flat blade screwdriver into the tab and pulling the
compartment from the module. There are two fuses in the compartment, one for the AC line and the
other for AC neutral.
Fuse
For 108-132 V Operation; use 0.8 A @ 250 V, 5X20 mm, fast acting, TEGAM PN#FU-800
For 216-264 V Operation; use 0.5 A @ 250 V, 5X20 mm, fast acting, TEGAM PN#FU-500
If problems continue, please contact TEGAM for additional service information.

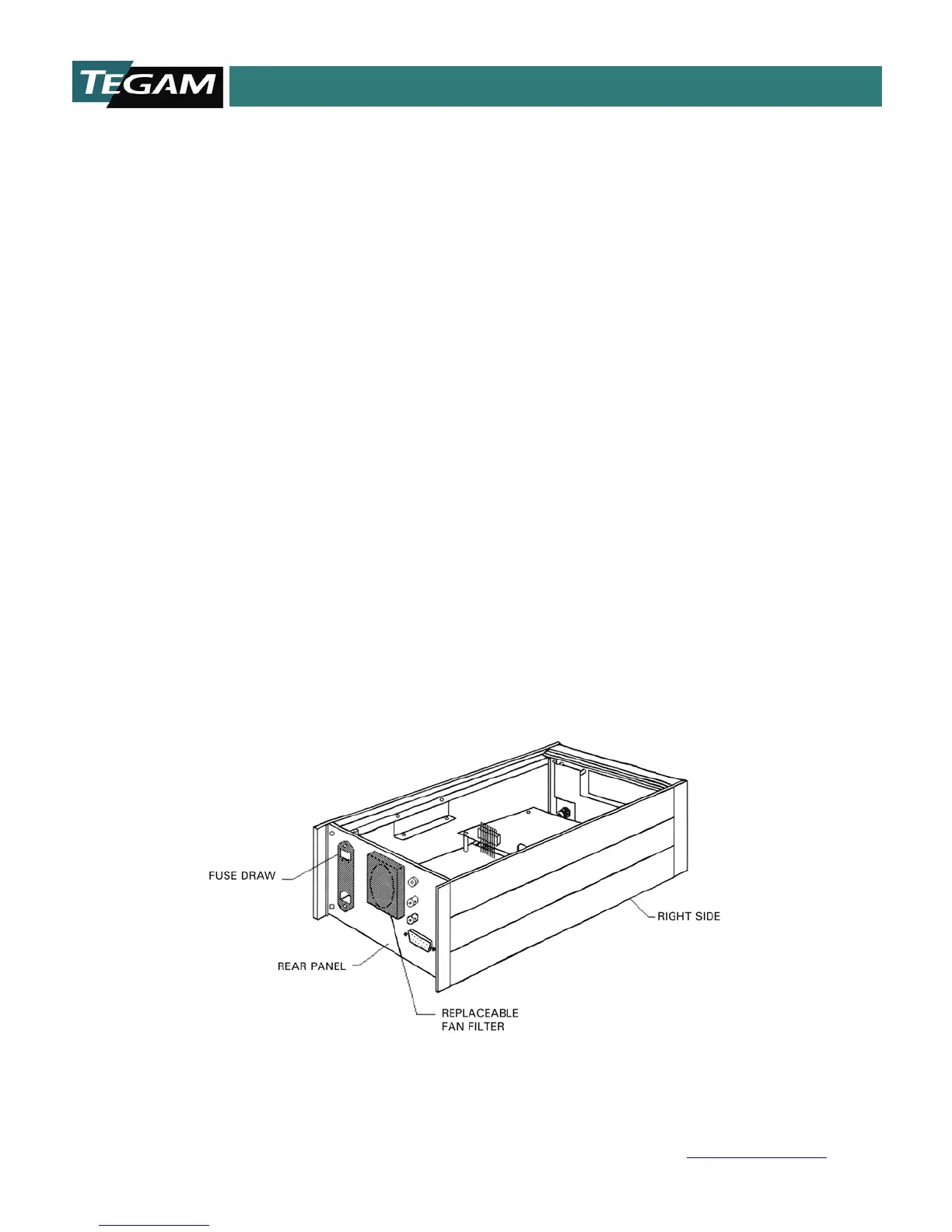

Figure: 6.2 Fuse and Filter Assemblies
