Calibration
1502C MTDR Service Manual
6–37
O
F
F
O
F
F
O
F
F
O
N
ac 0.000 ft

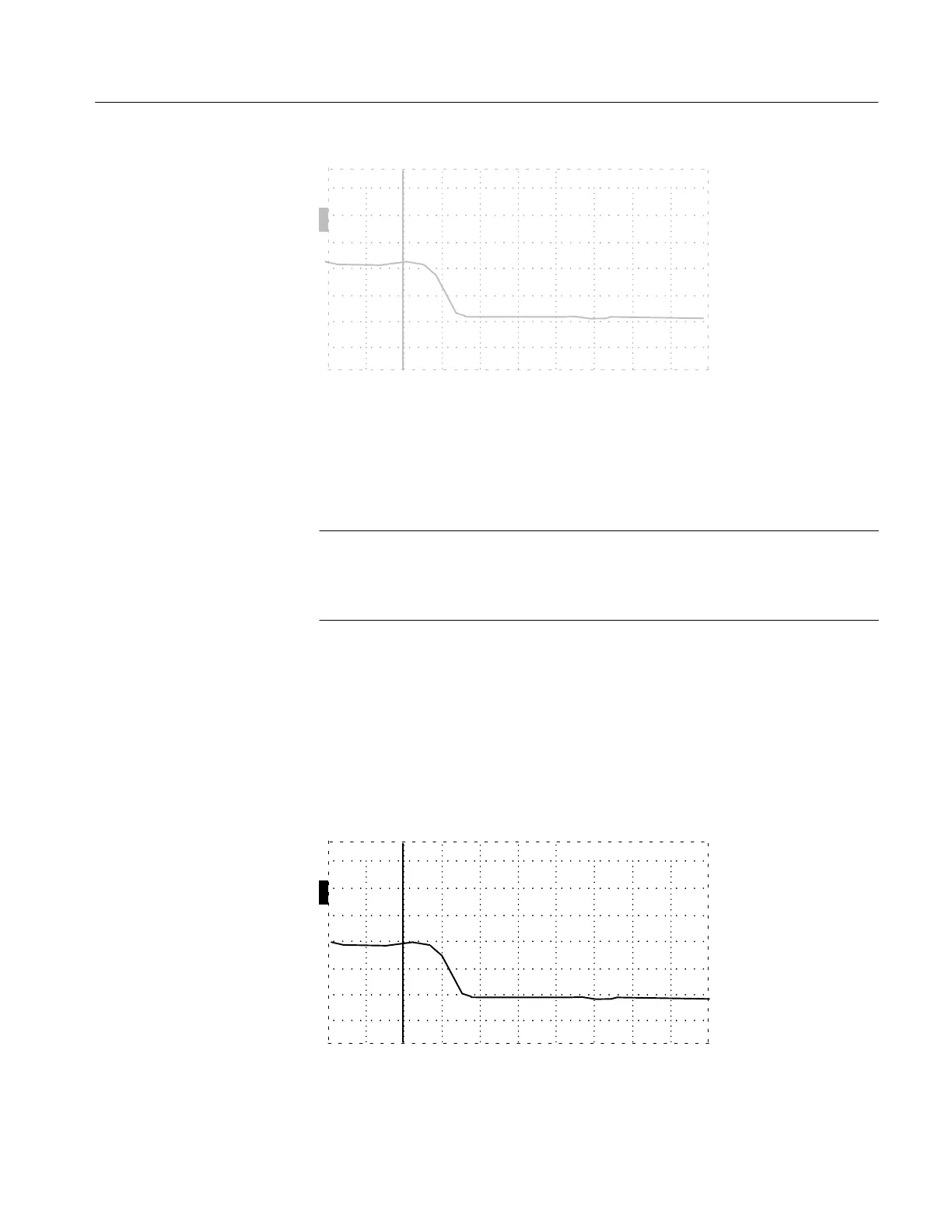

Figure 6–61: Waveform with Contrast Too Light
d. Start rotating R1018 slowly clockwise until all of the pixels are just visible
on the display. If you go too far, restart the adjustments at step c.
e. Rotate R1018 one quarter turn clockwise past the point of step d.
NOTE. It is important to always determine the proper contrast setting by coming
from a faded display. It takes a higher threshold voltage to turn a pixel on than it
does to turn one off. If it is done from the other direction, the display will be too
bright.
f. Inspect the display for any bleeding (areas that are too dark) or any fading
(areas that are too light).
g. Turn the instrument off.
h. After waiting a few seconds, turn the instrument back on.
i. Reinspect the display for bleeding or fading.
j. Readjust R1018 if necessary.
O
F
F
O
F
F
O
F
F
O
N
ac 0.000 ft
Figure 6–62: Waveform with Contrast Adjusted Correctly
