Maintenance
1502C MTDR Service Manual
7–17
100uS
2V
500mV
50uS
↓

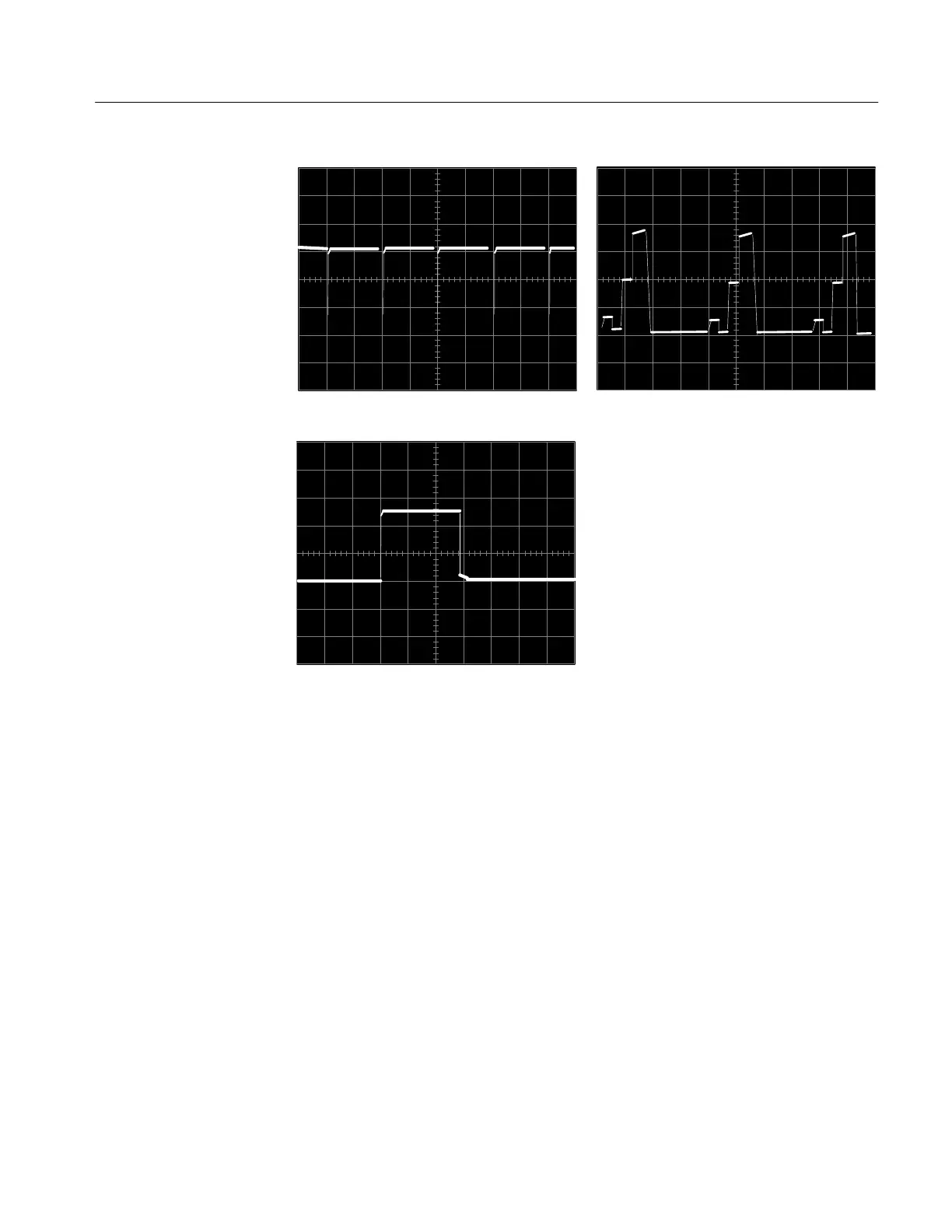

Figure 7–13: Main Board TP9011 Main Board TP9041
1V
2nS
Figure 7–14: Front Panel CABLE Connector
If it becomes necessary to ship the instrument to an authorized Tektronix Service
Center, follow the packing instructions as described in Repacking for Shipment on
page xiv.
Control Panel Installation
To prevent moisture and dirt from getting into the 1503C, special seals are used
around the LCD faceplate, options port, front panel, and front-panel button boot.
Removing the front-panel button boot or other rubber seals will require special
resealing procedures to retain the instrument weathertightness.
A list of sealants is provided on the next page to aid in reinstallation. However, we
recommend that resealing be done only by an authorized Tektronix Service Center.
The front panel/cover seal should be inspected regularly and replaced every six to
eight months, depending on the operating environment and use.
When All Else Fails
Watertight Seals
