AG7 Audio Generator module
How to operate
the AG7 module
After the AG7 module is installed in the mainframe, and the mainframe is installed
in the rack or other location where it will be used, use the following procedure to
access each f
unction of the module:
1. Connect the power cord to the power connector on the rear panel, and then
plug the cor
d into the AC electric power source. Electric power is supplied
to the mainframe.
2. Wait until
the power-on initialization process is complete, and then check that
there are no error m essages on the display.

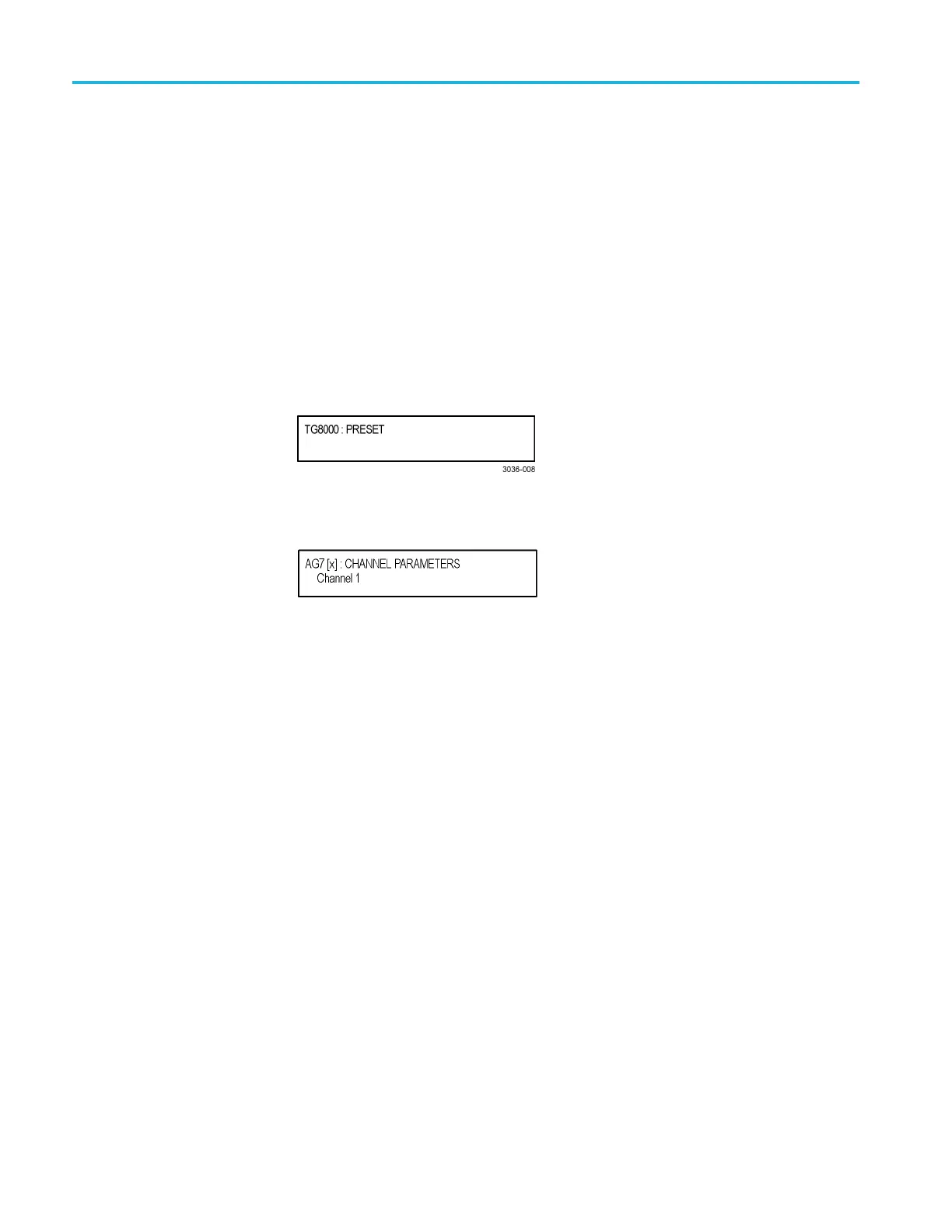

3. After the
initialization process, the mainframe main menu appears a s shown
below.
4. Press t
he front-panel MODULE button until the AG7 module main menu
appears as shown below.
5. Use the front-panel arrow buttons to navigate and select items in the main
menu and submenus. (See page 3-3, AG7 module main menu.)
3–2 TG8000 Multiformat Test Signal Generator User Manual
