Getting started

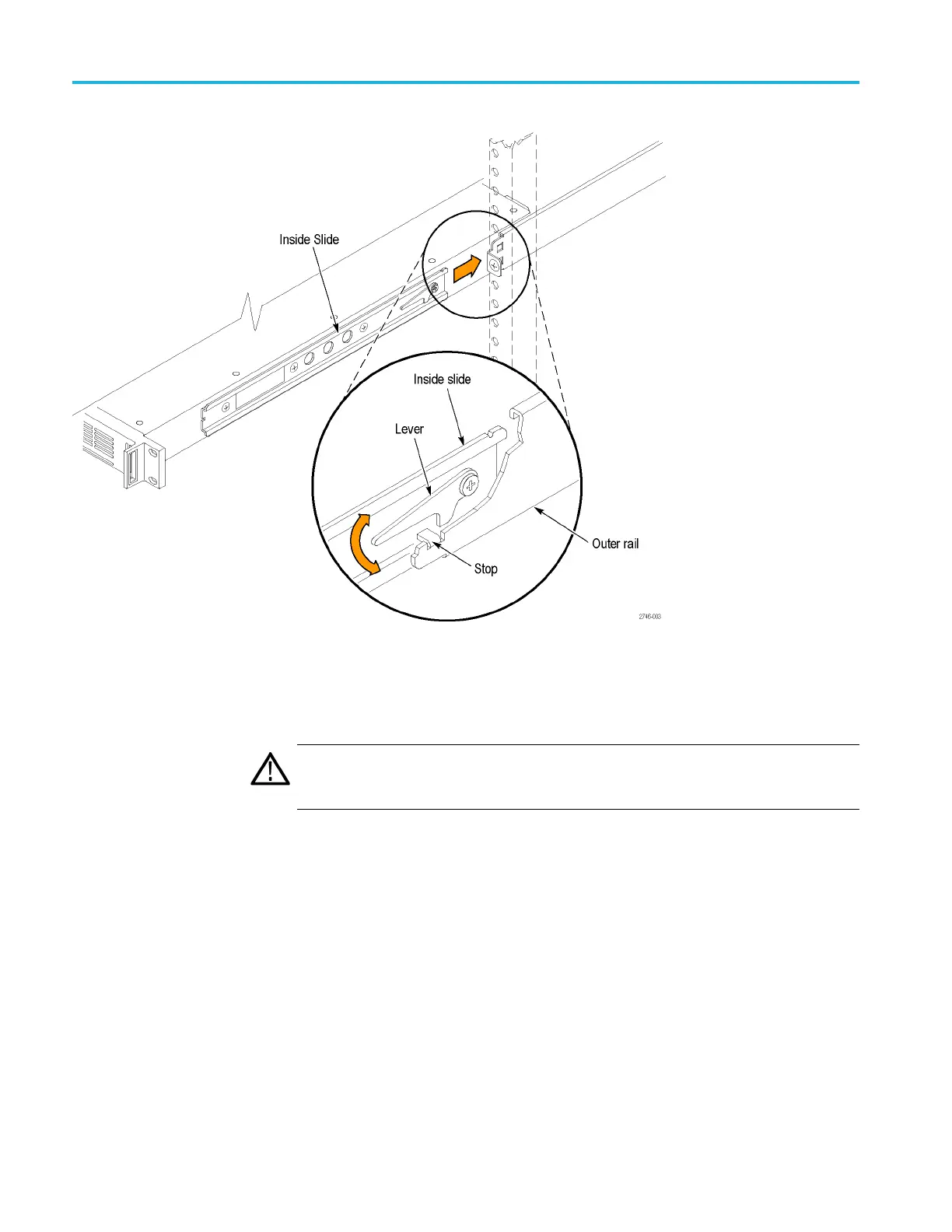

Figure 1-1: Installing or removing the instrument into or from the rack
To remove the instrument from an e quipment rack. Perform the following steps to
remove an instrument that is installed in an equipment rack:
WARNING. To prevent injury when removing the product from the rack, do not
forcefully and abruptly pull the product from the rack. Pull with the minimum
forc
e require d to move the instrument with a consistent, even motion.
1. Loosen the knob screws, if present, that attach the front of the instrument
to t
he rack.
2. Gently pull the instrument toward you until you can reach the levers at the
re
ar of the instrument.
3. Tilt both lever handles upward simultaneously to allow them to clear the
s
tops. (SeeFigure1-1.)
4. Pull the instrument past the stops and out of the rack.
1–8 TG8000 Multiformat Test Signal Generator User Manual
