Operating basics
SEQUENCE submenu
Use this menu to
select and run a sequence that is already loaded into the TG8000.
(See Figure 2-19.) A sequence is a series of generator settings defined using the
Tcl language and SCPI commands. The TG8000 loads a sequence and runs the
command and settings in the order dictated by the sequences file.
Refer to the TG8000 Programmer Manual for more information about using
sequences.

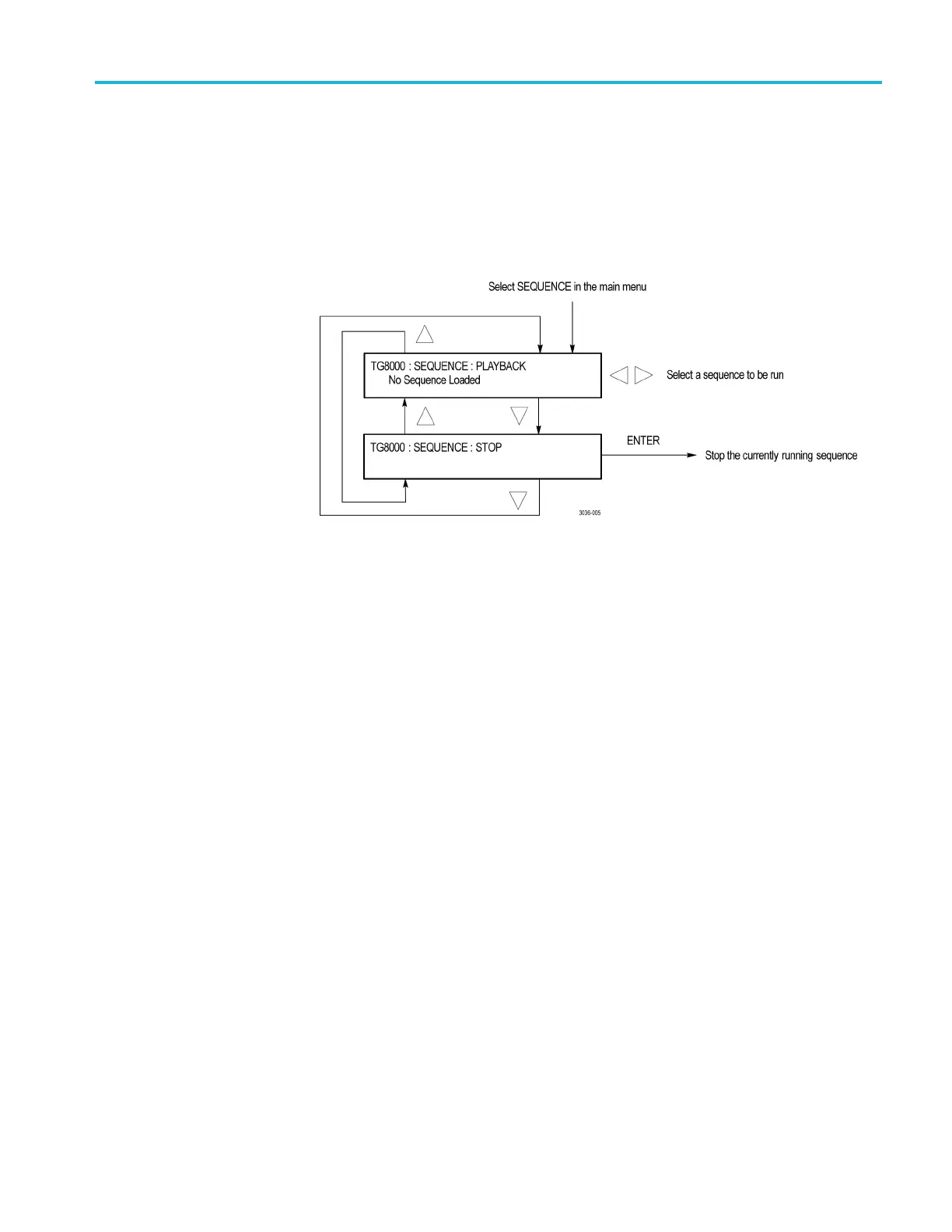

Figure 2-19: SEQUENCE submenu
PLAYBACK. Selects and runs a sequence. Use the left (◄)orright(►) arrow
butto
n to select the sequence you want to run, and then press the ENTER button to
run the sequence.
If no
sequence is loaded into the instrument, the message "No Sequence Found" is
displayed on the second line.
STOP. Stops the currently running sequence. When you select the menu item and
then press the ENTER button, the sequence is stopped.
TG8000 Multiformat Test Signal Generator User Manual 2–25
